Product Model

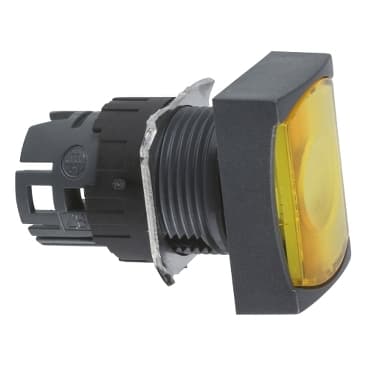

ZB6DW5
Selling Points
- 1IP65 Rated and UL 508 Certified: Durable and compliant with international safety standards.
- 216 mm Rectangular Design: Compact and versatile for various applications.
- 3Yellow Illuminated Flush Profile: Easy-to-see button with a sleek, flush design.
- 4Spring Return Mechanism: Reliable and consistent operation.
- 5Modular Head Design: Easy integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Integral LED | Device short name | ZB6 |
Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | Yellow flush, unmarked |
CAD overall width | 0.9 in (24 mm) | CAD overall height | 0.7 in (18 mm) |
CAD overall depth | 1.3 in (33 mm) | Net Weight | 0.035 lb(US) (0.016 kg) |
Protective treatment | TC | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP65 IEC 60529 | NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94 |
Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />JIS C 852<br />UL 508<br />JIS C8201-1 | Product Certifications | GOST<br />CSA<br />UL<br />CCC |
Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
