Product Model
ZB6DW9
Selling Points
- 1Designed as an illuminated flush head for integral LED, enhancing visibility in industrial settings.

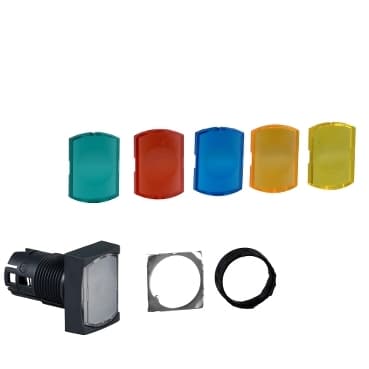

- 2Includes 6 colored caps (white, green, red, yellow, blue, and orange) for customizable operation.
- 3Constructed from plastic with a rectangular shape, offering IP65, NEMA 4X, and NEMA 13 protection.
- 4Facilitates impulse or momentary actions with its spring-return operating mode.
- 5Compatible with supply voltages of 12 V and 24 V (AC and DC), suitable for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Head for illuminated push-button |
Product Compatibility | Integral LED | Device short name | ZB6 |
Bezel material | Plastic | Mounting diameter | 0.6 in (16 mm) |
Sale per indivisible quantity | 1 | Shape of signaling unit head | Rectangular |
Type of operator | spring return | Operator profile | 6 colors choice flush, unmarked |
Operator additional information | Set of 6 color caps | CAD overall width | 0.9 in (24 mm) |
CAD overall height | 0.7 in (18 mm) | CAD overall depth | 1.3 in (33 mm) |
Net Weight | 0.035 lb(US) (0.016 kg) | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | IP degree of protection | IP65 IEC 60529 |
NEMA degree of protection | NEMA 13 UL 50<br />NEMA 4 UL 50<br />NEMA 4X UL 50<br />NEMA 4 CSA C22.2 No 94<br />NEMA 4X CSA C22.2 No 94<br />NEMA 13 CSA C22.2 No 94 | Standards | JIS C 852<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />UL 508<br />JIS C8201-1 |
Product Certifications | GOST<br />CSA<br />UL<br />CCC | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
