schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6E1B

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27136

In Stock
Last updated: 2025/4/20
View Specifications
schneider ZB6E1B

Selling Points

  • 1High Current Rating: Supports up to 6A of current.
  • 2Wide Voltage Range: Compatible with 240V AC and 250V DC.
  • 3IP20 Protection: Ensures reliable operation in various environments.
  • 4Faston Connector Terminals: Easy and quick mounting in 16mm diameter holes.
  • 5Slow-Break Operation: Provides positive opening and secure connections.
Product Details

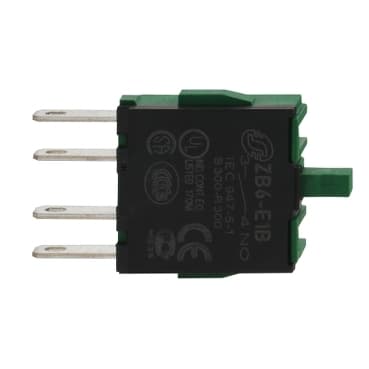

ZB6E1B
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Contact block
Device short name
ZB6
Sale per indivisible quantity
10
Contacts type and composition
1 NO
Contact operation
Slow-break
Contact block type
Single
Connections - terminals
Faston connector
Contacts material
Silver alloy (Ag/Ni)
Terminals description ISO n°1
(3-4)NO
Net Weight
0.009 lb(US) (0.004 kg)
Positive opening
With EN/IEC 60947-5-1 appendix K
Operating travel
0.08 in (2 mm) NO changing electrical state)<br />0.1 in (3.5 mm) total travel)
Operating force
1.6 N NO changing electrical state
Mechanical durability
5000000 cycles
Short-circuit protection
6 A cartridge fuse gG
[Ui] rated insulation voltage
250 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV EN/IEC 60947-1
[Ie] rated operational current
3 A 120 V, AC-15, B300<br />1.5 A 240 V, AC-15, B300<br />0.1 A 250 V, DC-13, R300<br />0.22 A 125 V, DC-13, R300
Electrical durability
1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Electrical reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
JIS C 4520<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 852<br />EN/IEC 60947-1<br />EN/IEC 60947-5-4<br />UL 508
Product Certifications
UL<br />CCC<br />CSA<br />GOST
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
