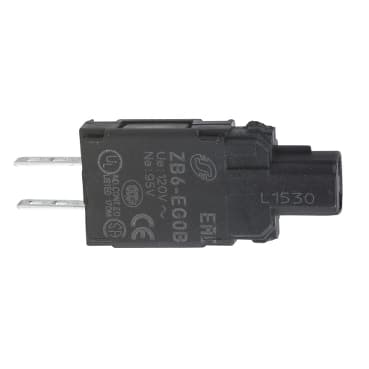

Product Model
ZB6EG0B
Selling Points
- 1Provides steady signaling with a neon bulb base, ensuring clear visibility in various environments.
- 2Built with robust materials, operating within -40°C to 70°C, suitable for harsh conditions.
- 3Front-mount design allows for straightforward installation, reducing setup time.
- 4Equipped with Faston connectors (2.8 x 0.5 mm) for secure and efficient connections.
- 5Meets IP 65 protection standards, ensuring reliable operation in diverse applications, and is mercury-free for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete body for pilot lights |
Device short name | ZB6 | Sale per indivisible quantity | 5 |
Connections - terminals | Faston connectors 2.8 x 0.5 mm | Light source | Neon (bulb not included) |
Bulb base | BA 9s | Light block supply | With resistor |
[Us] Rated Supply Voltage | 120 V AC | Terminals description ISO n°1 | (X1-X2)PL |
Net Weight | 0.007 lb(US) (0.003 kg) | Operating position | Any position |
[Ui] rated insulation voltage | 250 V 2)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 |
Signalling type | Steady | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | Standards | IEC 60947-5-1<br />JIS C 4520<br />JIS C 852<br />IEC 60947-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />UL 508 |
Product Certifications | CSA<br />CCC<br />UL<br />GOST | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
