schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZB6EM8B

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

26929

In Stock
Last updated: 2025/4/20
View Specifications

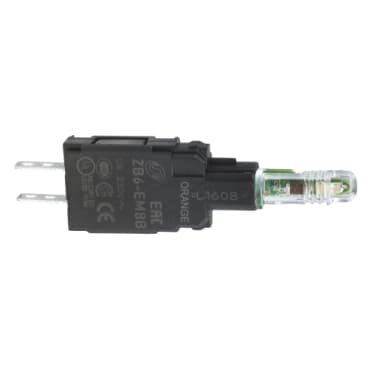

schneider ZB6EM8B

Selling Points

  • 1Comprehensive Compatibility: Designed for Harmony XB6 series switches and pilot lights.
  • 2Durable Construction: Made from monolithic plastic with a robust body and fixing collar.
  • 3Energy Efficiency: Powered by an integral LED light source, reducing energy consumption.
  • 4Safety Features: Meets stringent safety standards with a rated insulation voltage of 250 V and impulse withstand voltage of 4 kV.
  • 5Versatile Installation: Can be installed in any position, ensuring flexibility in industrial settings.
Product Details
ZB6EM8B
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Complete body for pilot lights
Device short name
ZB6
Sale per indivisible quantity
5
Connections - terminals
Faston connectors 2.8 x 0.5 mm
Light source
LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
Orange
[Us] Rated Supply Voltage
230...240 V AC
CAD overall height
0.6 in (14 mm)
CAD overall depth
2.3 in (58 mm)
Terminals description ISO n°1
(X1-X2)PL
Net Weight
0.007 lb(US) (0.003 kg)
Operating position
Any position
[Ui] rated insulation voltage
250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage
4 kV IEC 60947-1
Signalling type
Steady
Supply voltage limits
195…264 V AC
Surge withstand
1 kV in contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
Standards
JIS C 4520<br />UL 508<br />IEC 60947-5-5<br />IEC 60947-1<br />JIS C 852<br />IEC 60947-5-1<br />CSA C22.2 No 14
Product Certifications
CSA<br />CCC<br />UL<br />GOST
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6
Electromagnetic emission
Class B IEC 55011

Specifications may be subject to change without notice
