ZB6Z5B

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27559

In Stock
Last updated: 2025/4/18
View Specifications

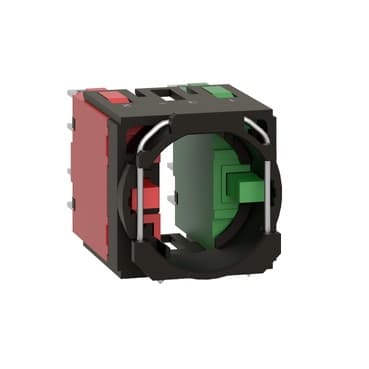

schneider ZB6Z5B

Selling Points

  • 1Reliable Electrical Component: Designed for pushbuttons and selector switches.
  • 2High Contact Rating: 6A at 250VAC/B300 to R300.
  • 3Durable Enclosure: IP65 rating for protection against dust and water.
  • 4Easy Installation: Faston terminal for direct mounting.
  • 5Sustainable Design: Compliant with EU RoHS Directive, REACh free of SVHC.
Product Details
ZB6Z5B
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB6
Product or Component Type
Complete body for push-buttons or selector switches
Device short name
ZB6
Fixing collar material
Plastic
Sale per indivisible quantity
1
Contacts type and composition
1 NO + 1 NC
Contact operation
Slow-break
Connections - terminals
Faston connector<br />Faston connector 2.8 x 0.5 mm
[Us] rated supply voltage
<= 250 V
CAD overall width
0.7 in (18 mm)
CAD overall height
0.7 in (18 mm)
CAD overall depth
1.6 in (40 mm)
Terminals description ISO n°1
(11-12)NC
Net Weight
0.013 lb(US) (0.006 kg)
Contacts usage
Standard
Positive opening
With IEC 60947-5-1 appendix K
Operating travel
0.04 in (1 mm) NC changing electrical state)<br />0.08 in (2 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel)
Operating force
1.6 N NO changing electrical state<br />2.5 N NC changing electrical state
Contacts material
Silver alloy (Ag/Ni)
Short-circuit protection
6 A cartridge fuse gG IEC 60947-5-1
[Ie] rated operational current
3 A 120 V, AC-15, B300<br />1.5 A 240 V, AC-15, B300<br />0.1 A 250 V, DC-13, R300<br />0.22 A 125 V, DC-13, R300
Electrical durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Electrical reliability
Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Protective treatment
TC
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-13…158 °F (-25…70 °C)
Electrical shock protection class
Class II IEC 61140
IP degree of protection
IP65 IEC 60529
Standards
JIS C 4520<br />IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />JIS C 852<br />IEC 60947-1
Product Certifications
GOST<br />CSA<br />UL<br />CCC
Vibration resistance
+/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
