Product Model

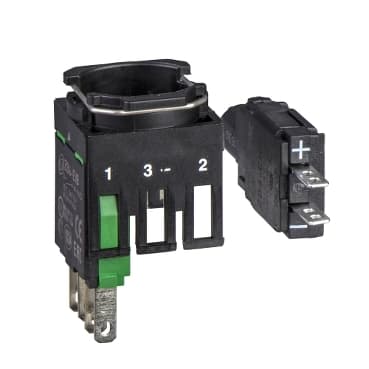

ZB6ZH02B
Selling Points
- 1Durable plastic enclosure with IP65 protection for reliable operation in harsh environments.
- 2Compatible with XB6/ZB6 series control and signaling units, ideal for push buttons and selector switches.
- 3Single contact block with faston connector, 1NC configuration, and silver alloy contacts for secure connections.
- 4Dimensions 0.71 in H x 0.71 in W x 1.57 in D, perfect for space-restricted applications.
- 5Meets NEMA 1/2/3/4/4X/12 ratings and IEC standards for safety and performance assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB6 | Product or Component Type | Complete body for illuminated push-button |
Device short name | ZB6 | Fixing collar material | Plastic |
Sale per indivisible quantity | 1 | Contacts type and composition | 1 NC |
Contact operation | Slow-break | Connections - terminals | Faston connector 2.8 x 0.5 mm |
Light source | Incandescent (bulb not included) | Bulb base | BA 9s |
Light block supply | Direct | [Us] rated supply voltage | 3...24 V |
CAD overall width | 0.9 in (24 mm) | CAD overall height | 0.7 in (18 mm) |
CAD overall depth | 1.6 in (40 mm) | Terminals description ISO n°1 | (11-12)NC |
Net Weight | 0.013 lb(US) (0.006 kg) | Contacts usage | Standard |
Positive opening | With EN/IEC 60947-5-1 appendix K | Operating travel | 0.04 in (1 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 2.5 N NC changing electrical state | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 6 A cartridge fuse gG EN/IEC 60947-5-1 | [Ui] rated insulation voltage | 250 V 3)EN/IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV EN/IEC 60947-1 | [Ie] rated operational current | 3 A 120 V, AC-15, B300<br />1.5 A 240 V, AC-15, B300<br />0.1 A 250 V, DC-13, R300<br />0.22 A 125 V, DC-13, R300 |
Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C<br />1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C | Electrical reliability | Λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN/IEC 60947-5-4 |
Signalling type | Steady | current consumption | 15 mA |
Surge withstand | 1 kV direct contact IEC 61000-4-5<br />2 kV in free air IEC 61000-4-5 | Protective treatment | TC |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Electrical shock protection class | Class II IEC 61140 | Standards | EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C 4520<br />UL 508<br />JIS C 852<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5 |
Product Certifications | GOST<br />CCC<br />CSA<br />UL | Vibration resistance | +/- 3 mm 2…500 Hz)IEC 60068-2-6<br />5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-2-6<br />8 kV in free air (in insulating parts) IEC 61000-2-6 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
