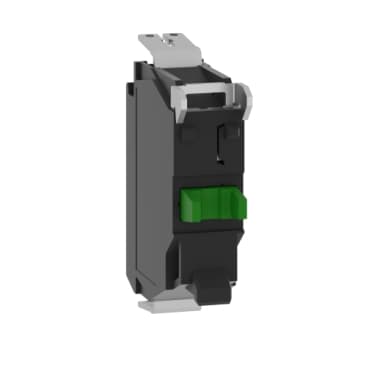

Product Model
ZBE1013
Selling Points
- 1Quick and easy connection for push buttons and selector switches.
- 21 million cycle high endurance under 6A load for less maintenance.
- 3Safeguards operators from unexpected contact with live circuits.
- 4Operates from -40°C to 70°C for versatile usage.
- 5Ensures reliable and durable electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | Standard contacts |
Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm | Net Weight | 0.024 lb(US) (0.011 kg) |
Contacts type and composition | 1 NO | Positive opening | Without |
Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.3 N NO changing electrical state |
Mechanical durability | 10000000 cycles | Contacts material | Silver alloy (Ag/Ni) |
[Ui] rated insulation voltage | 250 V 3)IEC 60947-1 | Mounting of block | Front mounting |
Electrical composition code | C1 9)<br />C2 7)<br />C3 6)<br />C4 4)<br />C5 5)<br />C6 3)<br />C7 4)<br />C8 2)<br />C9 3)<br />C12 6)<br />M1 6)<br />M2 4)<br />M3 4)<br />M5 2)<br />M6 2)<br />M7 6)<br />M8 4)<br />M9 2)<br />SF1 3)<br />SF2 2)<br />MF1 2)<br />MF2 2)<br />C10 2)<br />M4 2)<br />C13 1) | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Standards | IEC 60947-5-4<br />JIS C8201-5-1<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | BV<br />UL<br />CSA<br />DNV<br />LROS (Lloyds register of shipping) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
