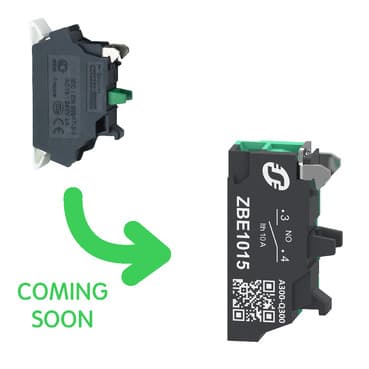

Product Model
ZBE1015
Selling Points
- 1High Current Rating: 10A contact current for reliable operation.
- 2Durable Construction: 5000000 cycles mechanical durability for long service life.
- 3IP20 Protection: Conforms to IEC 60529 protection rating, ensuring safe use in various environments.
- 4Spring Clamp Terminals: Silver alloy (Ag/Ni) spring clamp terminals for secure connections.
- 5Versatile Compatibility: Compatible with Harmony XB4 and XB5 range products, suitable for industrial, automotive, and commercial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | Standard contacts |
Connections - terminals | Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 | CAD overall width | 1.4 in (34.3 mm) |
CAD overall height | 0.6 in (14.8 mm) | CAD overall depth | 0.4 in (9.8 mm) |
Net Weight | 0.011 lb(US) (0.005 kg) | Contacts type and composition | 1 NO |
Positive opening | Without | Operating travel | 0.08 in (2.05 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 2.45 N NO changing electrical state | Mechanical durability | 10000000 cycles |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
[Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 300 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | [Ie] rated operational current | 6 A 120 V, AC-15, A300 IEC 60947-5-1<br />3 A 240 V, AC-15, A300 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q300 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 |
Mounting of block | Front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Standards | IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10 |
Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27<br />30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
