Product Model

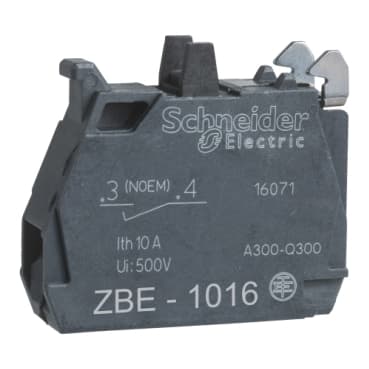

ZBE1016
Selling Points
- 1Highly Reliable: 1 million cycle endurance under 6A load ensures minimal maintenance and damage.
- 2Easy Installation: Fast and easy replacement with screw-clamp terminals for simple connections.
- 3Wide Temperature Range: Operates from -40°C to 70°C, offering versatility in various environments.
- 4Enhanced Safety: IP20 enclosure protects operators from unexpected contact with live circuits.
- 5Gold Flashed Contacts: Gold flashed (Ag/Ni/Au) contacts for high-quality electrical performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | Low power switching contacts |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Net Weight | 0.026 lb(US) (0.012 kg) |
Contacts type and composition | 1 NO | Positive opening | Without |
Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2.3 N NO changing electrical state |
Mechanical durability | 10000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
Shape of screw head | Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Gold flashed (Ag/Ni/Au) contacts |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
Mounting of block | Front mounting | Electrical composition code | C1 9)<br />C2 7)<br />C3 6)<br />C4 4)<br />C5 5)<br />C6 3)<br />C7 4)<br />C8 2)<br />C9 3)<br />C12 6)<br />M1 6)<br />M2 4)<br />M3 4)<br />M5 2)<br />M6 2)<br />M7 6)<br />M8 4)<br />M9 2)<br />SF1 3)<br />SF2 2)<br />MF1 2)<br />MF2 2)<br />C10 2)<br />M4 2)<br />C13 1) |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Standards | UL 508<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-4<br />IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1 |
Product Certifications | DNV<br />UL<br />CSA<br />LROS (Lloyds register of shipping)<br />BV<br />GOST | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
