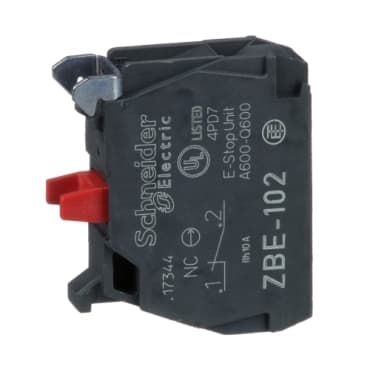

Product Model
ZBE102
Selling Points
- 1High Durability: 5 million-cycle mechanical durability ensures long-lasting performance.
- 2Impulse Withstand Voltage: 6kV rated impulse withstand voltage for robust operation.
- 3Easy Installation: Front mounting and screw clamp terminal for straightforward installation.
- 4Industrial Compatibility: Suitable for use with Schneider ZB4, ZB5, and ZBE series pushbutton switches.
- 5IP20 Protection: Conforms to IEC 60529, providing basic protection against solid objects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | Standard contacts |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1 | Net Weight | 0.024 lb(US) (0.011 kg) |
Contacts type and composition | 1 NC | Positive opening | With IEC 60947-5-1 appendix K |
Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) | Operating force | 2 N NC changing electrical state |
Mechanical durability | 10000000 cycles | Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 |
Shape of screw head | Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm | Contacts material | Silver alloy (Ag/Ni) |
Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 | [Ith] conventional free air thermal current | 10 A IEC 60947-5-1 |
[Ui] rated insulation voltage | 600 V 3)IEC 60947-1 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 |
[Ie] rated operational current | 3 A 240 V, AC-15, A600 IEC 60947-5-1<br />6 A 120 V, AC-15, A600 IEC 60947-5-1<br />0.1 A 600 V, DC-13, Q600 IEC 60947-5-1<br />0.27 A 250 V, DC-13, Q600 IEC 60947-5-1<br />0.55 A 125 V, DC-13, Q600 IEC 60947-5-1<br />1.2 A 600 V, AC-15, A600 IEC 60947-5-1 | Electrical durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
Mounting of block | Front mounting | Electrical composition code | C1 9)<br />C2 7)<br />C3 6)<br />C4 4)<br />C5 5)<br />C6 3)<br />C7 4)<br />C8 2)<br />C9 3)<br />C12 6)<br />M1 6)<br />M2 4)<br />M3 4)<br />M5 2)<br />M6 2)<br />M7 6)<br />M8 4)<br />M9 2)<br />SF1 3)<br />SF2 2)<br />MF1 2)<br />MF2 2)<br />C10 2)<br />M4 2)<br />C13 1) |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Standards | IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-1<br />UL 508<br />IEC 60947-5-4<br />JIS C8201-1 | Product Certifications | CSA<br />GOST<br />BV<br />DNV<br />LROS (Lloyds register of shipping)<br />CCC<br />UL |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
