schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBE102GEX

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27649

In Stock
Last updated: 2025/4/18
View Specifications

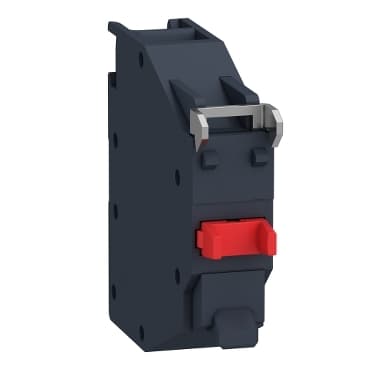

schneider ZBE102GEX

Selling Points

  • 1Gas-Protected Contacts: Ensures safety in hazardous locations.
  • 2Screw Clamp Terminals: Easy and secure connection.
  • 3ATEX D Certification: Meets stringent safety standards for explosive environments.
  • 4High Durability: Withstands 1,000,000 mechanical cycles.
  • 5Wide Operating Range: Operates from -50°C to 75°C and up to 415V.
Product Details
ZBE102GEX
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4
Product or Component Type
Contact block
Device short name
ZBE
Sale per indivisible quantity
1
Contact operation
Standard
Contact block type
Single
Contacts usage
Gas protected contact
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² without cable end<br />Screw clamp terminals, 1 x 2.5 mm² with cable end
CAD overall width
1.5 in (38 mm)
CAD overall height
0.4 in (10 mm)
CAD overall depth
1.7 in (42.4 mm)
Net Weight
0.042 lb(US) (0.019 kg)
marking
Ex db eb IIC Gb
Contacts type and composition
1 NC
Positive opening
With
Operating travel
0.066 in (1.688 mm) engagement point)<br />0.129 in (3.271 mm) changing state point)<br />0.174 in (4.424 mm) total travel)
Operating force
2.873 N
Mechanical durability
1000000 cycles
Tightening torque
7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
415 V
[Ie] rated operational current
1.9 A 380 V, AC, A600 IEC 60947-5-1<br />3 A 240 V, AC, A600 IEC 60947-5-1<br />6 A 120 V, AC, A600 IEC 60947-5-1<br />0.27 A 250 V, DC, Q300 IEC 60947-5-1<br />0.55 A 125 V, DC, Q300 IEC 60947-5-1<br />2.87 A 24 V, DC, Q300 IEC 60947-5-1
Mounting of block
Front mounting
Protective treatment
TH
Ambient Air Temperature for Storage
-58…158 °F (-50…70 °C)
Ambient Air Temperature for Operation
-58…167 °F (-50…75 °C)
Standards
UL 60079-31<br />UL 60079-0<br />UL 60079-1<br />ANSI/ISA 12.12.01<br />EN/IEC 60079-0<br />EN/IEC 60079-31<br />CSA C22.2 No 213<br />EN/IEC 60079-1<br />EN/IEC 60079-7
Product Certifications
cULus
Environmental characteristic
Hazardous location class I division 2

Specifications may be subject to change without notice
