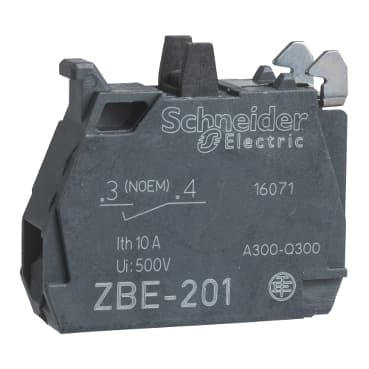

Product Model
ZBE2019
Selling Points
- 1Robust Design: Built with high-quality materials for reliable performance.
- 2Easy Installation: Front mount design with screw clamp terminals for quick setup.
- 3Versatile Compatibility: Compatible with Harmony XB4 and XB5 control units.
- 4Durable Contacts: 1 NO 1 NC contact configuration ensures robust control.
- 5Sustainable Manufacturing: Made with environmentally friendly materials and packaging.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Early make |
Contact block type | Single | Contacts usage | Staggered contacts |
Connections - terminals | Screw terminals for lug | Contacts type and composition | 1 NO |
Positive opening | Without | Operating travel | 0.1 in (2.6 mm) NO changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 2.3 N NO changing electrical state | Mechanical durability | 10000000 cycles |
Contacts material | Silver alloy (Ag/Ni) | Mounting of block | Front mounting |
Electrical composition code | C1 9)<br />C2 7)<br />C3 6)<br />C4 4)<br />C5 5)<br />C6 3)<br />C7 4)<br />C8 2)<br />C9 3)<br />C12 6)<br />M1 6)<br />M2 4)<br />M3 4)<br />M5 2)<br />M6 2)<br />M7 6)<br />M8 4)<br />M9 2)<br />SF1 3)<br />SF2 2)<br />MF1 2)<br />MF2 2)<br />C10 2)<br />M4 2)<br />C13 1) | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Standards | JIS C8201-5-1<br />EN/IEC 60947-5-4<br />CSA C22.2 No 14<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-1<br />JIS C8201-1 | Product Certifications | LROS (Lloyds register of shipping)<br />CSA<br />UL<br />GL<br />DNV<br />BV |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
