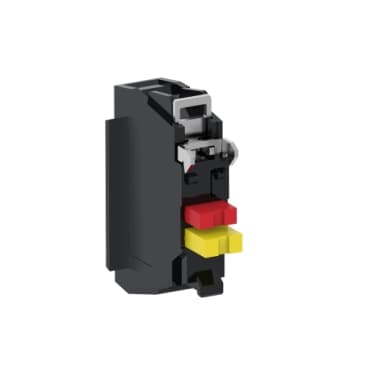

Product Model
ZBE302
Selling Points
- 1Single contact block with silver alloy contacts for high reliability.
- 2Compatible with Harmony XB4 and XB5 series for versatile applications.
- 3Screw clamp terminal ensures secure and easy connections.
- 4Operating temperature range from -40°C to 70°C for broad usage.
- 5Shock protection level up to IK06 for robust performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 5 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | Monitoring contact |
Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.34 mm² without cable end IEC 60947-1 | CAD overall width | 0.4 in (10 mm) |
CAD overall height | 1.6 in (41 mm) | CAD overall depth | 1.02 in (26 mm) |
Net Weight | 0.029 lb(US) (0.013 kg) | Contacts type and composition | 1 NC monitoring contact |
Positive opening | With IEC 60947-5-1 appendix K | Operating travel | 0.06 in (1.5 mm) NC changing electrical state)<br />0.2 in (4.3 mm) total travel) |
Operating force | 5 N NC changing electrical state | Mechanical durability | 300000 cycles |
Tightening torque | 7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1 | Shape of screw head | Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm |
Contacts material | Silver alloy (Ag/Ni) | Short-circuit protection | 6 A cartridge fuse gG IEC 60947-5-1 |
[Ith] conventional free air thermal current | 6 A IEC 60947-5-1 | [Ui] rated insulation voltage | 300 V 3)IEC 60947-1 |
[Uimp] rated impulse withstand voltage | 4 kV IEC 60947-1 | [Ie] rated operational current | 1.5 A 240 V, AC-15, B300 IEC 60947-5-1<br />3 A 120 V, AC-15, B300 IEC 60947-5-1<br />0.11 A 250 V, DC-13, R300 IEC 60947-5-1<br />0.22 A 125 V, DC-13, R300 IEC 60947-5-1 |
Electrical durability | 300000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />300000 cycles, AC-15, 3 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />300000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />300000 cycles, DC-13, 0.3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C<br />300000 cycles, DC-13, 1 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C | Electrical reliability | Λ < 10exp(-7) 5 V 1 mA in clean environment IEC 60947-5-4<br />Λ < 10exp(-8) 17 V 3.4 mA in clean environment IEC 60947-5-4 |
Mounting of block | Front mounting | Device presentation | Basic element |
Protective treatment | TH | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | Standards | IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 60947-5-1<br />CSA C22.2 No 60947-5-1<br />JIS C8201-1<br />JIS C8201-5-1<br />GB/T 14048.5<br />BS EN 60947-5-1<br />GOST IEC 60947-5-1 |
Product Certifications | CSA<br />EAC<br />BV<br />DNV<br />CE<br />LROS (Lloyds register of shipping)<br />CCC<br />UL Listed<br />CB Scheme<br />UKCA | Vibration resistance | 5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27 |
Specifications may be subject to change without notice
