Product Model

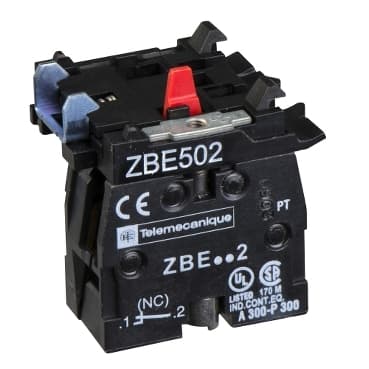

ZBE502
Selling Points
- 1High-Quality Contact Block: The ZBE502 features a durable metal construction for long-lasting performance.
- 2Screw Terminal Type: Easy installation with screw terminals for secure connections.
- 3Compact Design: D22mm screw size ensures a compact and space-efficient design.
- 4Versatile Compatibility: Compatible with various contact blocks in the Harmony XB series.
- 5Green Premium Certification: Meets Schneider Electric's Better World standards for environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Contact block |
Device short name | ZBE | Sale per indivisible quantity | 1 |
IP degree of protection | IP20 IEC 60529 | Contact operation | Slow-break |
Contact block type | Single | Contacts usage | High power switching contacts |
Connections - terminals | Screw clamp terminals, <= 1 x 2.5 mm² with cable end<br />Screw clamp terminals, <= 2 x 1.5 mm² with cable end<br />Screw clamp terminals, <= 2 x 2.5 mm² without cable end<br />Screw clamp terminals, >= 1 x 0.5 mm² without cable end | Net Weight | 0.04 lb(US) (0.02 kg) |
Contacts type and composition | 1 NC | Positive opening | With |
Mechanical durability | 10000000 cycles | Short-circuit protection | 10 A cartridge fuse gG IEC 60947-5-1 |
[Ith] conventional free air thermal current | 10 A IEC 60947-5-1 | [Ui] rated insulation voltage | 300 VIEC 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947-1 | [Ie] rated operational current | 1.1 A 125 V, DC-13, P300 IEC 60947-5-1 |
Mounting of block | Front mounting | Electrical composition code | C15 1) |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 | Shock resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Specifications may be subject to change without notice
