schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBE5023

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27793

In Stock
Last updated: 2025/4/18
View Specifications

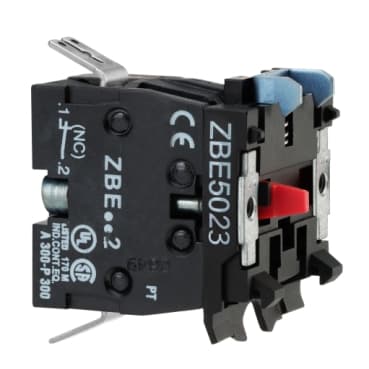

schneider ZBE5023

Selling Points

  • 1Quick and Easy Assembly: The ZBE5023 contact block offers quick and easy assembly and disassembly, saving time in your electrical projects.
  • 2Robust and Reliable: Built to withstand harsh environments, this contact block ensures robust and reliable performance in demanding applications.
  • 3Versatile Connections: Compatible with various types of connections including screw clamp, connector, Faston connector, or spring terminal.
  • 4High Power Switching: Designed for high power switching applications, making it ideal for industrial control systems.
  • 5Sustainable Packaging: Made with recycled cardboard packaging, aligning with Schneider Electric's commitment to sustainability and reducing carbon footprint.
Product Details
ZBE5023
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4<br />Harmony XB5
Product or Component Type
Contact block
Device short name
ZBE
Sale per indivisible quantity
1
IP degree of protection
IP20 IEC 60529
Contact operation
Slow-break
Contact block type
Single
Contacts usage
High power switching contacts
Connections - terminals
Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm
Net Weight
0.04 lb(US) (0.02 kg)
Contacts type and composition
1 NC
Positive opening
With
Mechanical durability
10000000 cycles
Short-circuit protection
10 A cartridge fuse gG IEC 60947-5-1
[Ith] conventional free air thermal current
10 A IEC 60947-5-1
[Ui] rated insulation voltage
300 VIEC 60947-1
[Uimp] rated impulse withstand voltage
6 kV IEC 60947-1
[Ie] rated operational current
1.1 A 125 V, DC-13, P300 IEC 60947-5-1
Mounting of block
Front mounting
Electrical composition code
C15 1)
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
Vibration resistance
5 gn 2…500 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Specifications may be subject to change without notice
