Product Model

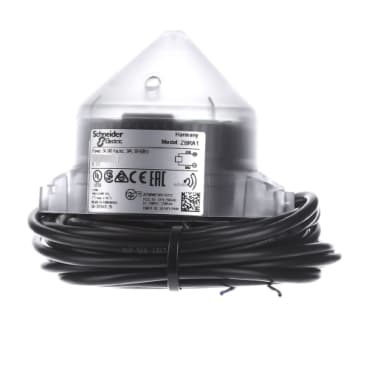

ZBRA1
Selling Points
- 1Omni-Directional AC/DC Relay Antenna: Suitable for both AC and DC applications, ensuring versatile use in various electrical systems.
- 25m Cable Output: Provides a reliable and extended connection for seamless communication between devices.
- 324 to 240 VAC/24 VDC Compatibility: Supports a wide voltage range, making it adaptable to different electrical environments.
- 44W AC/DC Power Consumption: Energy-efficient design with low power consumption, ideal for batteryless operations.
- 5Polycarbonate Glass Material: Durable construction using high-quality polycarbonate glass for enhanced durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless range |
Device short name | ZBRA | Product destination | Wireless Schneider Electric ecosystem devices |
Control station application | Transceiver (emission and reception) | Colour of base of enclosure | Black RAL 9011) |
Colour of cover | Transparent | Material | Polycarbonate |
frequency | 2405 MHz transmitter<br />2405 MHz receiver | emission class | 5M00G7W |
Antenna type | Omnidirectional | Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 |
Antenna gain | 0 dBi | Maximum sensing distance | 984.3 ft (300 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
maximum emission power | 3 mW | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
Maximum power consumption in W | 4 W AC/DC | Operating position | Vertical |
Status LED | 1 LED Green power ON<br />1 LED Green emission signal | Overvoltage category | III IEC 60664-1 |
Rated short-duration power frequency withstand voltage | 4 kV 50 Hz IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 4 kV |
Electrical connection | 2 conductors cable 0.0005 in² (0.34 mm²) - flexible - 16.4 ft (5 m) conforming to IEC 60947-1 | Tightening torque | 5.3 lbf.in (0.6 N.m) IEC 60947-1 |
Housing material | Self-extinguishing plastic | Short-circuit protection | 0.4 A fuse fast blow |
Max power consumption in W | 1 mW | Number of Channels | 1 |
Modulation technique | O-QPSK | Bandwidth | 5 MHz |
Net Weight | 0.4 lb(US) (0.2 kg) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Relative humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 | Electrical shock protection class | Class II IEC 61140 |
IP degree of protection | IP65 IEC 60529 131 °F (55 °C) 0.1 m | Pollution degree | 3 IEC 60664-1 |
IK degree of protection | IK03 conforming to IEC 62262 | Radio agreement | RSS<br />SRRC<br />ANATEL, type III ETSI EN 301 489-3<br />ARIB T66, class 2 ETSI EN 301 489-3<br />FCC, category 2 ETSI EN 300 440-1<br />ICASA, category 1 ETSI EN 300 440-1 |
Product Certifications | CCC<br />BT 2006/95/EC<br />UL<br />GOST<br />CSA<br />CE<br />C-tick | Directives | 1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility |
Vibration resistance | +/-0.5 mm 10…55 Hz)IEC 60068-2-6<br />6 gn 55…150 Hz)IEC 60068-2-6 | Shock resistance | 25 gn 6 ms) 6000 shocks IEC 60068-2-27<br />15 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
Insulation resistance | > 500 MOhm 500 V DC NF C 20030 | [Ui] rated insulation voltage | 250 V IEC 60664-1 |
Electromagnetic compatibility | Immunity for industrial environments conforming to IEC 61000-6-2<br />Conducted and radiated emissions class B conforming to CISPR 22<br />Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 2 kV conforming to IEC 61000-4-4<br />1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5<br />1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6<br />Immunity to microbreaks and voltage drops conforming to IEC 61000-4-11<br />Radiated emission conforming to ETSI EN 300 440-1<br />Conducted emission conforming to EN 300-489-1<br />Conducted emission conforming to ETSI EN 300 489-3<br />Radiated emission conforming to ETSI EN 300 440-2 |
Specifications may be subject to change without notice
