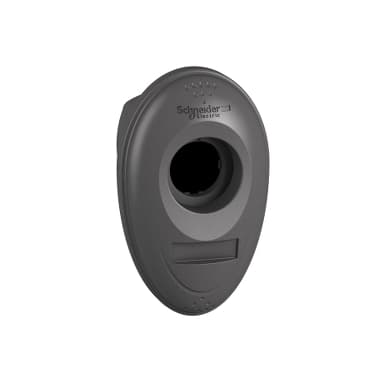

Product Model
ZBRM01
Selling Points
- 1Compliant with EN/IEC 60947-5-1 and UL 508 standards
- 2Polycarbonate construction for durability
- 3Dark gray RAL 7016 finish for aesthetic appeal
- 4Compatible with Harmony XB5R 22 mm control units
- 5Operates between -13 to 131°F ambient air temperature
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Empty handy box |
Device short name | ZBRM | Mounting diameter | 0.9 in (22 mm) |
Product destination | For XB5R Ø 22 mm control units | Control station application | One function |
Colour of base of enclosure | Dark grey RAL 7016) | Colour of cover | Dark grey RAL 7016) |
Material | Polycarbonate | Net Weight | 0.4 lb(US) (0.2 kg) |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…131 °F (-25…55 °C) |
IP degree of protection | IP65 IEC 60529 | IK degree of protection | IK03 conforming to IEC 62262 |
Standards | ETSI EN 301 489-1<br />ETSI EN 300 440-1<br />ETSI EN 300 440-2<br />ETSI EN 301 489-3<br />UL 508<br />CSA C22.2 No 14<br />IEC 60947-5-1 | Product Certifications | C-tick<br />FCC<br />ANATEL<br />RSS<br />BT 2006/95/EC<br />GOST<br />CE<br />SRRC |
Directives | 2004/108/EC - electromagnetic compatibility<br />1999/5/EC - R&TTE directive |
Specifications may be subject to change without notice
