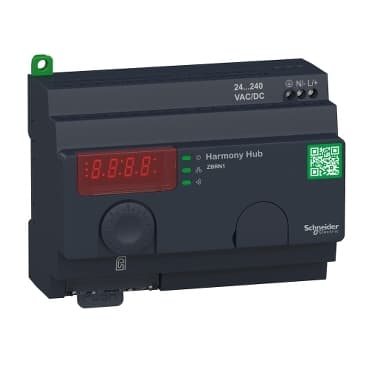

Product Model
ZBRN1
Selling Points
- 1Wireless to Modbus/TCP Ethernet Gateway: Seamlessly integrates wireless Zigbee green power with Modbus/TCP Ethernet for robust communication.
- 224-240 V AC/DC Compatibility: Operates within a wide voltage range, ensuring flexibility in various industrial settings.
- 3High-Performance Connectivity: Supports up to 60 devices on the same protocol, enhancing network efficiency.
- 4Compact Design: Measures 122 mm x 90 mm x 60 mm, making it easy to install in tight spaces.
- 5Enhanced Security and Compliance: Compliant with EU RoHS, CE, and other international standards for electromagnetic compatibility and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony | Product or Component Type | Harmony Hub Wireless/Ethernet gateway |
Device short name | ZBRN1 | Product Specific Application | Wireless Schneider Electric devices ecosystem |
Function of module | Zigbee green power gateway | Communication port protocol | Modbus/TCP client application, with ZBRCETH module |
Antenna type | Integrated | Transmission frequency | 2405…2480 MHz |
Maximum radio communication distance | 328.08 ft (100 m) in free field<br />820.2 ft (250 m) if a relay antenna is located between the transmitter and Harmony Hub<br />196.9 ft (60 m) if an external antenna is connected to Harmony Hub<br />82.02 ft (25 m) with Harmony Hub installed in a metal housing or in a closed metal enclosure | Radio response time | < 30 ms |
Radio channels utilisation | <= 60 devices | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
Immunity to microbreaks | 10 ms | Maximum power consumption in W | 4 W AC/DC |
Control circuit frequency | 50...60 Hz +/- 10 % | Short-circuit protection | 16 A GB2 circuit breaker |
Operating position | Any position | Mounting support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715<br />Mounting plate |
Electrical connection | 1 conductor cable 0.0003…0.006 in² (0.2…4 mm²) - AWG 24...AWG 12 - solid - without cable end IEC 60947-1<br />2 conductors cable 0.0003…0.002 in² (0.2…1.5 mm²) - AWG 24...AWG 16 - solid - without cable end IEC 60947-1<br />1 conductor cable 0.0003…0.001 in² (0.2…0.75 mm²) - AWG 24...AWG 14 - flexible - with cable end IEC 60947-1<br />2 conductors cable 0.0003…0.004 in² (0.2…2.5 mm²) - AWG 24...AWG 18 - flexible - with cable end IEC 60947-1 | Tightening torque | 3.10…3.5 lbf.in (0.35…0.4 N.m) EN/IEC 60947-1<br />3.09…3.54 lbf.in (0.35…0.40 N.m) EN/IEC 60947-1 |
Housing material | Self-extinguishing plastic | Status LED | 1 LED Green power ON<br />1 LED Yellow communication network<br />5 LEDs Red function mode<br />1 LED green and yellow reception signal |
Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz EN/IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 4 kV |
Surge withstand | 1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5 | Width | 4.8 in (122 mm) |
Height | 3.5 in (90 mm) | Depth | 2.4 in (60 mm) |
Net Weight | 0.57 lb(US) (0.26 kg) | Antenna gain | 0 dBi |
Integrated connection type | Ethernet Modbus TCP/IP RJ45 Modbus TCP network, 10/100 Mbit/s, 2 twisted pairs | Data storage equipment | SD card |
Topology | Devices linked by daisy-chaining or tap junctions | Port Ethernet | 10BASE-T/100BASE-T |
Maximum cable distance between devices | 3280.8 ft (1000 m) | Radio agreement | ANATEL, type III ETSI EN 301 489-3<br />FCC, category 2 ETSI EN 300 440-1<br />ICASA<br />RSS, category 1 ETSI EN 300 440-1<br />SRRC |
Product Certifications | C-tick<br />CCC<br />CSA<br />GOST<br />UL<br />CE | Directives | 2004/108/EC - electromagnetic compatibility<br />1999/5/EC - R&TTE directive<br />2006/95/EC - low voltage directive |
Standards | ETSI EN 300 328<br />EN/IEC 61131-2<br />CSA C22.2 No 14<br />ETSI EN 300 440-2<br />UL 508<br />EN/IEC 60950-1<br />EN 62311 | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Relative humidity | 90 % -13…131 °F (-25…55 °C), without condensation ETSI EN 300 440-1 | Operating altitude | 0...6561.68 ft (0...2000 m) |
Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | +/- 3.5 mm 5…14 Hz) IEC 60068-2-6<br />1 gn 5…150 Hz) on panel mounting IEC 60068-2-6<br />2 gn 8…150 Hz) on DIN rail IEC 60068-2-6 |
Shock resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 | IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) |
Pollution degree | 2 IEC 60664-1 | Electromagnetic compatibility | 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5<br />1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5<br />Immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11 |
Dielectric strength | 3000 V between input and output AC<br />4250 V between input and output DC<br />1500 V between input and ground AC<br />2150 V between input and ground DC |
Specifications may be subject to change without notice
