schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBRN12

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27776

In Stock
Last updated: 2025/4/18
View Specifications

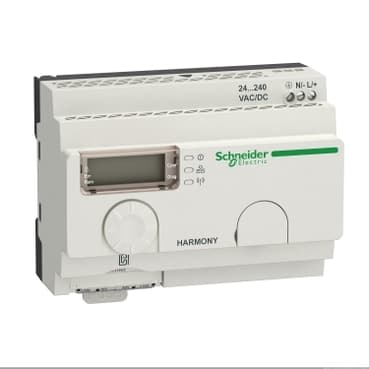

schneider ZBRN12

Selling Points

  • 1Fast Radio Response Time: <30 ms after transmitter clicks for swift connectivity.
  • 2Versatile Power Supply: 24-240 V AC/DC, 50/60 Hz, ensuring compatibility with various environments.
  • 3Advanced Zigbee Connectivity: Supports Zigbee concentrator interface for efficient sensor pairing and commissioning.
  • 4Reliable Display: 4 displays with 5 LEDs for clear operating status indication.
  • 5Environmentally Friendly: Packaging made with recycled cardboard, aligning with Schneider Electric's sustainability goals.
Product Details
ZBRN12
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony
Product or Component Type
Wireless access point
Device short name
ZBRN2
Product Specific Application
Interface to PLC
Function of module
Monostable
Radio response time
< 30 ms after transmitter clicks
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz - 10...10 %
Immunity to microbreaks
10 ms
Maximum power consumption in W
4 W AC/DC
Breaking capacity
750 VA
Control circuit frequency
50...60 Hz +/- 10 %
Short-circuit protection
16 A GB2 circuit breaker
Rated short-duration power frequency withstand voltage
1.5 kV 50 Hz EN/IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV
Surge withstand
1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5
Width
4.8 in (122 mm)
Height
3.5 in (90 mm)
Depth
2.4 in (60 mm)
Net Weight
0.60 lb(US) (0.27 kg)
Product Certifications
CSA<br />C-tick<br />UL<br />GOST<br />CE<br />CCC
Directives
1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive
Standards
CSA C22.2 No 14<br />UL 508<br />ETSI EN 300 328<br />EN/IEC 60950-1<br />ETSI EN 300 440-2<br />EN 62311<br />EN/IEC 61131-2
marking
CE
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Vibration resistance
+/- 3.5 mm 5…14 Hz) IEC 60068-2-6<br />1 gn 5…150 Hz) on panel mounting IEC 60068-2-6<br />2 gn 8…150 Hz) on DIN rail IEC 60068-2-6
IP degree of protection
IP20 IEC 60529 casing)<br />IP20 terminals)

Specifications may be subject to change without notice
