schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBRN32

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27818

In Stock
Last updated: 2025/4/18
View Specifications

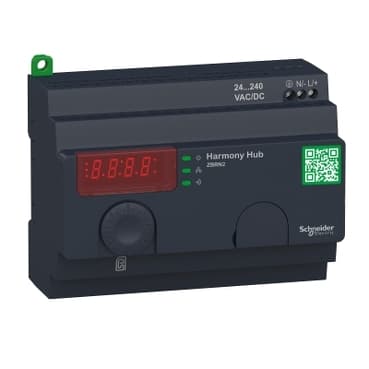

schneider ZBRN32

Selling Points

  • 1Quick and Easy Assembly: Assemble and disassemble the ZBRN32 quickly for efficient installation.
  • 2Robust Design: Withstands harsh environments due to its robust construction.
  • 3Versatile Connections: Supports various connection types including screw clamp, connector, Faston connector, spring terminal, and printed circuit board.
  • 4High Reliability: Features a monostable function and immunity to microbreaks, ensuring reliable operation.
  • 5Comprehensive Certifications: Meets international standards including GOST, C-tick, UL, CE, CSA, and CCC for global compatibility.
Product Details
ZBRN32
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony
Product or Component Type
Wireless access point
Device short name
ZBRN2
Product Specific Application
Interface to PLC
Function of module
Monostable
Radio response time
< 30 ms after transmitter clicks
[Us] Rated Supply Voltage
24...240 V AC/DC 50/60 Hz - 10...10 %
Immunity to microbreaks
10 ms
Maximum power consumption in W
4 W AC/DC
Breaking capacity
750 VA
Control circuit frequency
50...60 Hz +/- 10 %
Short-circuit protection
16 A GB2 circuit breaker
Rated short-duration power frequency withstand voltage
1.5 kV 50 Hz IEC 60947-5-1
[Uimp] rated impulse withstand voltage
4 kV
Surge withstand
1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5
Width
4.8 in (122 mm)
Height
3.5 in (90 mm)
Depth
2.4 in (60 mm)
Net Weight
0.60 lb(US) (0.27 kg)
Product Certifications
GOST<br />C-tick<br />UL<br />CE<br />CSA<br />CCC
Directives
2006/95/EC - low voltage directive<br />1999/5/EC - R&TTE directive<br />2004/108/EC - electromagnetic compatibility
Standards
IEC 62311<br />IEC 60950-1<br />ETSI EN 300 328<br />CSA C22.2 No 14<br />ETSI EN 300 440-2<br />UL 508<br />IEC 61131-2
marking
CE
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Vibration resistance
+/- 3.5 mm 5…14 Hz) IEC 60068-2-6<br />1 gn 5…150 Hz) on panel mounting IEC 60068-2-6<br />2 gn 8…150 Hz) on DIN rail IEC 60068-2-6
IP degree of protection
IP20 IEC 60529 casing)<br />IP20 terminals)

Specifications may be subject to change without notice
