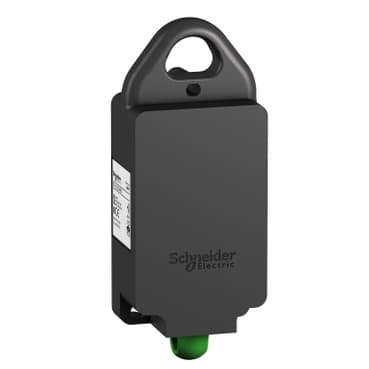

Product Model
ZBRP1
Selling Points
- 1Wireless and Batteryless Operation: No batteries required, ensuring continuous operation.
- 2High Durability: Withstands 1,000,000 cycles, ensuring long-lasting performance.
- 3IP66 Protection: Impact, dust, water, and vibration resistant for outdoor use.
- 4Zigbee Green Power Protocol: Operates at 2.4 GHz in compliance with IEEE 802.15.4.
- 5Versatile Installation: Suitable for automatic doors with a pulling force from 45N to 1000N.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5R | Product or Component Type | Wireless and batteryless transmitter |
Device short name | ZBRP1 | Bezel material | Plastic |
Transmission frequency | 2405 MHz | emission class | 5M00G7W |
Antenna type | Omnidirectional | Number of Channels | 1 |
Antenna gain | 0 dBi | CAD overall height | 5.7 in (144 mm) |
CAD overall width | 2.2 in (56 mm) | CAD overall depth | 1.5 in (38 mm) |
Net Weight | 0.33 lb(US) (0.15 kg) | Mechanical robustness | Free fall resistance 1 m EN/IEC 60068-2-31 |
Standards | UL 508<br />EN/IEC 60947-1<br />EN/IEC 62479<br />EN/IEC 60947-5-1<br />EN/IEC 300328 | Radio agreement | ICASA<br />GITEKI |
Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 | Maximum sensing distance | 328.08 ft (100 m) in free field |
Emission Power | 3 mW | Fixing mode | By screw 15.9…19.5 lbf.in (1.8…2.2 N.m) |
Mounting Mode | Between 2 ropes<br />Panel mount with universal support | Operating position | Any position |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) |
Relative humidity | 95 % without condensation | IP degree of protection | IP65 IEC 62262 |
NEMA degree of protection | NEMA 4 | IK degree of protection | IK05 conforming to IEC 62262 |
Mechanical durability | 1000000 cycles | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz)<br />Susceptibility to electromagnetic fields - test level: 6 V/m (2000...6000 MHz) |
Product Certifications | UL<br />GOST<br />CE<br />RCM<br />ANATEL<br />FCC<br />UKCA |
Specifications may be subject to change without notice
