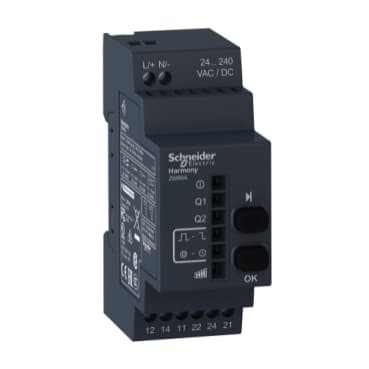

Product Model
ZBRRA
Selling Points
- 1Programmable Receiver for Industrial Use: Ideal for machine manufacturers and control system panel builders.
- 22 Relays with High Power Output: Supports up to 3A at 24V DC and 3A at 240V AC.
- 3Advanced Communication: Utilizes Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4.
- 4Durable Construction: Designed with omnidirectional antenna and robust mounting system.
- 5Enhanced Safety Features: Includes 2 pushbuttons, 6 LEDs, and bi-stable monostable stop/start functions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony | Product or Component Type | Programmable receiver |
Device short name | ZBRRA | Product Specific Application | Interface to actuators |
Function of module | Bi-stable<br />Monostable<br />Stop/start | Reset time | 2 ms time delay |
Transmission frequency | 2405 MHz | emission class | 5M00G7W |
Antenna type | Omnidirectional | Nominal output current | 0.3 A 48 V DC IEC 60947-5-1<br />3 A 24 V DC UL 508<br />1.5 A 240 V AC IEC 60947-5-1<br />3 A 120 V AC IEC 60947-5-1<br />3 A 240 V AC UL 508<br />3 A 24 V DC CSA C22.2 No 14<br />3 A 240 V AC CSA C22.2 No 14 |
Output Type | 2 relays | Output contacts | 2 C/O |
Input output isolation | Galvanic isolation | Time delay range | 0.5 s - 15...15 %) |
Switching capacity in VA | 1250 VA | Maximum switching current | 5 mA AC/DC |
Maximum switching voltage | 250 V AC/DC | [Us] Rated Supply Voltage | 24...240 V AC/DC 50/60 Hz - 10...10 % |
Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 | Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />131.2 ft (40 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
Response Time | < 30 ms after transmitter clicks | Utilisation category | AC-15 : B300 IEC 60947-5-1<br />DC-12 IEC 60947-5-1 |
Maximum power consumption in W | 4 W AC/DC | Breaking capacity | 750 VA |
Control circuit frequency | 50...60 Hz +/- 10 % | Short-circuit protection | 0.4 A fuse fast blow |
Operating position | Any position without derating | Electrical connection | 1 conductor cable 0.0002…0.004 in² (0.14…2.5 mm²) - AWG 26...AWG 14 - solid - without cable end IEC 60947-1<br />2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - solid - without cable end IEC 60947-1<br />1 conductor cable 0.0002…0.006 in² (0.14…4 mm²) - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1<br />2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1 |
Tightening torque | 4.4…8.9 lbf.in (0.5…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
Status LED | 1 LED Green power ON<br />2 LEDs Green relay ON<br />2 LEDs Green function mode<br />1 LED green and yellow reception signal | Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715<br />Mounting plate |
Rated short-duration power frequency withstand voltage | 1.5 kV 50 Hz IEC 60947-5-1 | [Uimp] rated impulse withstand voltage | 4 kV |
Surge withstand | 1 kV differential mode IEC 61000-4-5<br />2 kV common mode IEC 61000-4-5 | Max power consumption in W | 1 mW |
Number of Channels | 1 | Modulation technique | O-QPSK |
Bandwidth | 5 MHz | Antenna gain | 0 dBi |
Width | 1.4 in (36 mm) | Height | 4.3 in (108 mm) |
Depth | 3.0 in (75 mm) | Net Weight | 0.29 lb(US) (0.13 kg) |
Standards | CSA C22.2 No 14<br />UL 508<br />IEC 60947-5-1<br />IEC 60947-1 | Radio agreement | RSS<br />SRRC<br />ANATEL<br />ARIB T66<br />FCC<br />ICASA |
Product Certifications | C-tick<br />CCC<br />CSA<br />UL<br />GOST | marking | CE |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Relative humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 |
Vibration resistance | +/- 7.5 mm 5…14 Hz)IEC 60068-2-6<br />2 gn 8…150 Hz)IEC 60068-2-6 | Shock resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 |
IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) | Pollution degree | 2 IEC 60664-1 |
Overvoltage category | II IEC 60664-1 | Insulation resistance | > 500 MOhm 500 V DC NF C 20-030 |
[Ui] rated insulation voltage | 250 V IEC 60664-1 | Electromagnetic compatibility | Immunity for industrial environments conforming to IEC 61000-6-2<br />Conducted and radiated emissions class B conforming to CISPR 22<br />Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4<br />1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5<br />1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6<br />Immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11<br />Radiated emission conforming to ETSI EN 300 440-1<br />Conducted emission conforming to EN 300-489-1<br />Conducted emission conforming to ETSI EN 300 489-3<br />Radiated emission conforming to ETSI EN 300 440-2 |
Electrical durability | 100000 cycles | Mechanical durability | 1000000 cycles |
Specifications may be subject to change without notice
