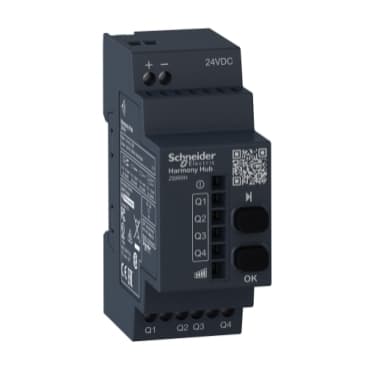

Product Model
ZBRRH
Selling Points
- 1Robust Connectivity: Compatible with Harmony XB5R, ensuring seamless integration.
- 2Advanced Features: Equipped with 4 PNP outputs and 2 pushbuttons for enhanced control.
- 3Energy Efficiency: Operates at 200mA, 24V DC, minimizing power consumption.
- 4Reliable Signaling: Includes LED indicators for clear status and reception signals.
- 5Versatile Mounting: Supports various connection types including screw clamp, connector, and spring terminal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony | Product or Component Type | Wireless receiver |
Device short name | ZBRRH | Product Specific Application | Interface to Harmony hub |
Function of module | Bi-stable | Reset time | 2 ms time delay |
Transmission frequency | 2405 MHz | emission class | 5M00G7W |
Antenna type | Omnidirectional | Output Type | Transistor PNP |
Output contacts | 4 PNP | Time delay range | 0.5 s - 15...15 %) |
Maximum switching current | 0.2 mA DC | Minimum switching current | 10 mA 5 V DC |
[Us] Rated Supply Voltage | 24 V DC - 15...20 % | Maximum voltage drop | <2 V DC 2 A |
Communication port protocol | Zigbee green power 2.4 GHz IEEE 802.15.4 | Maximum sensing distance | 328.08 ft (100 m) in free field<br />82.02 ft (25 m) transmitter in a plastic box type XAL D and receiver in a metal enclosure<br />131.2 ft (40 m) transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna |
Response Time | < 30 ms after transmitter clicks | Channels utilisation | 1 Harmony Hub per receiver |
Utilisation category | DC-13 EN/IEC 60947-5-1 | Maximum power consumption in VA | 20 VA DC |
Maximum power consumption in W | 20 W DC | Breaking capacity | 4.8 W per output) |
Short-circuit protection | 0.4 A fuse fast blow | Operating position | Any position without derating |
Electrical connection | 1 conductor cable 0.0002…0.004 in² (0.14…2.5 mm²) - AWG 26...AWG 14 - solid - without cable end IEC 60947-1<br />2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - solid - without cable end IEC 60947-1<br />1 conductor cable 0.0002…0.006 in² (0.14…4 mm²) - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1<br />2 conductors cable 0.0002…0.002 in² (0.14…1.5 mm²) - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1 | Tightening torque | 4.4…8.9 lbf.in (0.5…1 N.m) EN/IEC 60947-1 |
Housing material | Self-extinguishing plastic | Status LED | 1 LED Green power ON<br />1 LED green and yellow reception signal<br />4 LEDs Green relay ON |
Mounting support | 35 mm symmetrical DIN rail conforming to EN/IEC 60715<br />Mounting plate | Rated short-duration power frequency withstand voltage | 1 kV 50 Hz EN/IEC 60947-5-1 |
[Uimp] rated impulse withstand voltage | 0.8 kV | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
Max power consumption in W | 1 mW | Number of Channels | 1 |
Modulation technique | O-QPSK | Bandwidth | 5 MHz |
Antenna gain | 0 dBi | Width | 1.4 in (36 mm) |
Height | 4.3 in (108 mm) | Depth | 3.0 in (75 mm) |
Net Weight | 0.29 lb(US) (0.13 kg) | Standards | EN/IEC 60947-5-1 |
Radio agreement | RSS<br />SRRC<br />ANATEL<br />ARIB T66<br />FCC<br />ICASA | Product Certifications | CCC<br />CSA<br />GOST<br />C-tick<br />UL |
marking | CE | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Relative humidity | 90 % -4…131 °F (-20…55 °C), without condensation ETSI EN 300 440-1 | Vibration resistance | +/- 7.5 mm 5…14 Hz)IEC 60068-2-6<br />2 gn 8…150 Hz)IEC 60068-2-6 |
Shock resistance | 10 gn 16 ms) 6000 shocks IEC 60068-2-27 | IP degree of protection | IP20 IEC 60529 casing)<br />IP20 terminals) |
Pollution degree | 2 IEC 60664-1 | Overvoltage category | III IEC 60664-1 |
Insulation resistance | > 500 MOhm 500 V DC NF C 20-030 | [Ui] rated insulation voltage | 60 V IEC 60664-1 |
Electromagnetic compatibility | Immunity for industrial environments conforming to EN/IEC 61000-6-2<br />Conducted and radiated emissions class B conforming to CISPR 22<br />Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3<br />Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4<br />Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6<br />Radiated emission conforming to ETSI EN 300 440-1<br />Conducted emission conforming to EN 300-489-1<br />Conducted emission conforming to ETSI EN 300 489-3<br />Radiated emission conforming to ETSI EN 300 440-2<br />Electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4<br />1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5<br />1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5<br />Immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11 |
Specifications may be subject to change without notice
