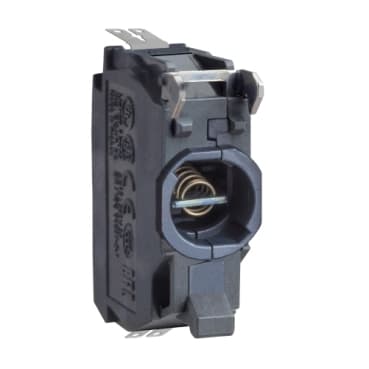

Product Model
ZBV63
Selling Points
- 1Compatible with BA9s base bulbs for seamless integration.
- 2Supports both AC and DC voltage up to 250V for versatile use.
- 3Equipped with fast-on terminals for easy installation and connection.
- 4Durable plastic body ensures long-lasting performance in industrial environments.
- 5Although discontinued, a recommended replacement is available for continued support and functionality.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Light block |
Device short name | ZBV | Sale per indivisible quantity | 5 |
Connections - terminals | Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm | Signalling type | Steady |
Light source | Bulb not included | Bulb base | BA 9s |
Light block supply | Direct | [Us] rated supply voltage | 250 V |
Net Weight | 0.037 lb(US) (0.017 kg) | Service life | 100000 h at rated voltage and 25 °C |
Surge withstand | 1 kV IEC 61000-4-5 | Mounting of block | Front mounting |
Electrical composition code | M7<br />M8<br />MF2<br />P3<br />PF2 | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
IP degree of protection | IP20 IEC 60529 | Standards | CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-1<br />UL 508<br />JIS C8201-5-1<br />IEC 60947-5-5<br />JIS C8201-1 |
Resistance to fast transients | 2 kV IEC 61000-4-4 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Resistance to electrostatic discharge | 6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 | Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
