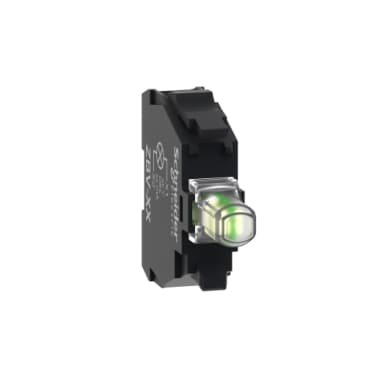

schneider ZBVB1

Selling Points

  • 1Reliable 24VAC/DC operation for seamless integration into industrial control systems.
  • 2Durable LED light source with a protected design for long-lasting performance.
  • 3Easy front mounting with screw clamp terminals for quick installation.
  • 4Compatible with ZB4, ZB5, and ZBE series pushbutton switches for versatile use.
  • 5RoHS compliant and free from SVHC substances, ensuring environmental safety.
Product Details
ZBVB1
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5<br />Harmony XB4
Product or Component Type
Light block
Device short name
ZBV
Sale per indivisible quantity
5
Connections - terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1<br />Screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Signalling type
Steady
Light source
Universal LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
White
[Us] rated supply voltage
24 V
Net Weight
0.037 lb(US) (0.017 kg)
Tightening torque
7.08…10.6 lbf.in (0.8…1.2 N.m) IEC 60947-1
Shape of screw head
Cross Philips no 1<br />Cross pozidriv No 1<br />Slotted flat Ø 4 mm<br />Slotted flat Ø 5.5 mm
Supply voltage limits
19.2…30 V DC<br />21.6…26.4 V AC
Current Consumption
15 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Mounting of block
Front mounting
Electrical composition code
M1<br />M2<br />M3<br />M4<br />M5<br />M6<br />M10<br />MF1<br />P1<br />P2<br />PF1
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
JIS C8201-5-1<br />IEC 60947-1<br />IEC 60947-5-1<br />CSA C22.2 No 14<br />IEC 60947-5-5<br />IEC 60947-5-4<br />UL 508<br />JIS C8201-1
Product Certifications
UL Listed<br />CSA
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011
