schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBVB13

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27917

In Stock
Last updated: 2025/4/19
View Specifications

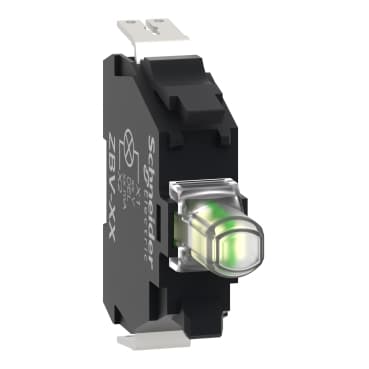

schneider ZBVB13

Selling Points

  • 1Universal Compatibility: Works with Harmony XB5 and XB4 systems.
  • 2Efficient Design: Operates with a universal LED for consistent lighting.
  • 3Durable Construction: Made with a robust plastic body to withstand harsh environments.
  • 4Easy Installation: Quick and easy assembly and disassembly with fast-on terminals.
  • 5Reliable Performance: Designed to last with a service life of 100,000 hours at rated voltage and 25°C.
Product Details
ZBVB13
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5<br />Harmony XB4
Product or Component Type
Light block
Device short name
ZBV
Sale per indivisible quantity
5
Connections - terminals
Faston connector 1 x 6.35 mm<br />Faston connector 2 x 2.8 mm
Signalling type
Steady
Light source
Universal LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
White
[Us] rated supply voltage
24 V
Net Weight
0.037 lb(US) (0.017 kg)
Supply voltage limits
19.2…30 V DC<br />21.6…26.4 V AC
current consumption
15 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Mounting of block
Front mounting
Electrical composition code
M1<br />M2<br />M3<br />M4<br />M5<br />M6<br />M10<br />MF1<br />P1<br />P2<br />PF1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-5-4<br />IEC 60947-5-5<br />IEC 60947-5-1<br />IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />UL 508<br />JIS C8201-1
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011

Specifications may be subject to change without notice
