schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBVBG19

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27876

In Stock
Last updated: 2025/4/19
View Specifications

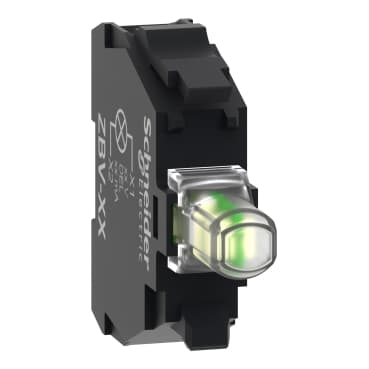

schneider ZBVBG19

Selling Points

  • 1Versatile Operation: Operates with 24-120V AC/DC, ensuring compatibility with various electrical systems.
  • 2Easy Installation: Quick and easy assembly and disassembly via screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
  • 3Robust Design: Withstands harsh environments and meets IP20 protection standards for safe operation.
  • 4Long Service Life: Designed to last 100,000 hours at rated voltage and 25°C, ensuring reliable performance over time.
  • 5Compliant Standards: Meets international standards including IEC 60947-1, IEC 60947-5-1, and CSA C22.2 No 14 for safety and reliability.
Product Details
ZBVBG19
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4<br />Harmony XB5
Product or Component Type
Light block
Device short name
ZBV
Sale per indivisible quantity
5
Connections - terminals
Screw terminals for lug
Signalling type
Steady
Light source
Universal LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
White
[Us] rated supply voltage
24...120 V
Net Weight
0.037 lb(US) (0.017 kg)
Supply voltage limits
19.2…132 V DC<br />21.6…132 V AC
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Mounting of block
Front mounting
Electrical composition code
M1<br />M2<br />M3<br />M4<br />M5<br />M6<br />M10<br />MF1<br />P1<br />P2<br />PF1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
EN/IEC 60947-5-4<br />UL 508<br />EN/IEC 60947-1<br />EN/IEC 60947-5-5<br />JIS C8201-5-1<br />EN/IEC 60947-5-1<br />CSA C22.2 No 14<br />JIS C8201-1
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011

Specifications may be subject to change without notice
