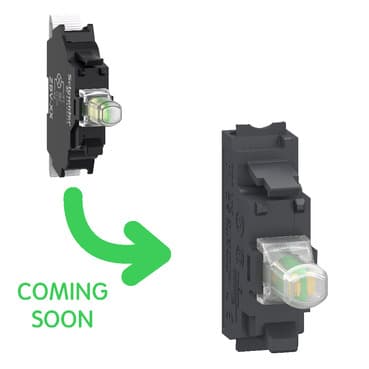

Product Model
ZBVG15
Selling Points
- 1Compact design for 22mm heads.
- 2Compatible with Harmony XB4 and XB5 series.
- 3110-120VAC voltage rating.
- 4Spring clamp terminals for easy installation.
- 5100,000-hour service life at rated voltage and 25°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB5<br />Harmony XB4 | Product or Component Type | Light block |
Device short name | ZBV | Sale per indivisible quantity | 5 |
Connections - terminals | Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1 | Signalling type | Steady |
Light source | Universal LED | Bulb base | Integral LED |
Light block supply | Direct | Light source colour | White |
[Us] rated supply voltage | 110...120 V | CAD overall width | 1.4 in (35.6 mm) |
CAD overall height | 0.6 in (14.8 mm) | CAD overall depth | 0.4 in (9.8 mm) |
Net Weight | 0.011 lb(US) (0.005 kg) | Supply voltage limits | 102…132 V AC |
current consumption | 19 mA | Service life | 100000 h at rated voltage and 25 °C |
Surge withstand | 1 kV IEC 61000-4-5 | Mounting of block | Front mounting |
Device presentation | Basic element | Protective treatment | TH |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
IP degree of protection | IP20 IEC 60529 | Standards | IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10<br />GB/T 14048.5 |
Product Certifications | BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA | Resistance to fast transients | 2 kV IEC 61000-4-4 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 | Resistance to electrostatic discharge | 4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2 |
Electromagnetic emission | Class B IEC 55011 |
Specifications may be subject to change without notice
