schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBVJ15

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27954

In Stock
Last updated: 2025/4/19
View Specifications
schneider ZBVJ15

Selling Points

  • 1The ZBVJ15 light block is designed for easy installation and replacement on compatible illuminated push-button or selector switch units.
  • 2Operates with a universal LED, ensuring visual distinction of signaling units.
  • 3Protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
  • 4Operates in a wide range of temperatures from -40°C to 70°C, offering versatility in usage.
  • 5Made with recycled cardboard, aligning with Schneider Electric's "Use Better, Use Longer, Use Again" campaign for extended product lifetimes and recyclability.
Product Details

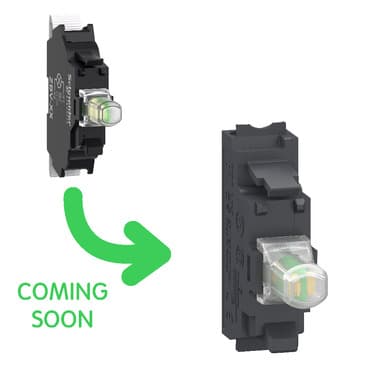

ZBVJ15
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5<br />Harmony XB4
Product or Component Type
Light block
Device short name
ZBV
Sale per indivisible quantity
5
Connections - terminals
Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Signalling type
Steady
Light source
Universal LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
White
[Us] rated supply voltage
12 V
CAD overall width
1.4 in (35.6 mm)
CAD overall height
0.6 in (14.8 mm)
CAD overall depth
0.4 in (9.8 mm)
Net Weight
0.011 lb(US) (0.005 kg)
Supply voltage limits
10.2…13.2 V DC<br />10.2…13.2 V AC
current consumption
15 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Mounting of block
Front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10
Product Certifications
BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011

Specifications may be subject to change without notice
