schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBVM14

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

27970

In Stock
Last updated: 2025/4/19
View Specifications

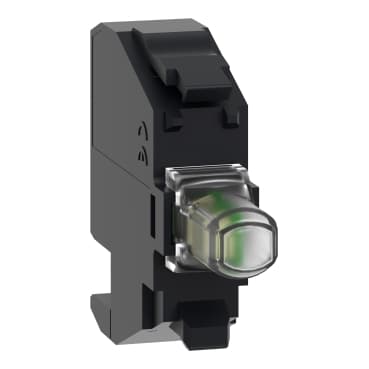

schneider ZBVM14

Selling Points

  • 1The ZBVM14 features a universal LED light source for steady signalling.
  • 2Operates with a rated supply voltage of 230 to 240V AC, ensuring reliable operation.
  • 3Provides IP20 protection index, safeguarding operators from unexpected contact with live circuits.
  • 4Easy to install and replace on compatible illuminated pushbutton or selector switch units via clip-together assembly.
  • 5Comes with an 18-month warranty for added peace of mind.
Product Details
ZBVM14
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB4<br />Harmony XB5
Product or Component Type
Light block
Device short name
ZBV
Sale per indivisible quantity
5
Connections - terminals
Plug-in connector
Signalling type
Steady
Light source
Universal LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
White
[Us] rated supply voltage
230...240 V
Net Weight
0.035 lb(US) (0.016 kg)
Supply voltage limits
195…264 V AC
current consumption
19 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Mounting of block
Front mounting
Electrical composition code
M1<br />M2<br />M3<br />M4<br />M5<br />M6<br />M10<br />MF1<br />P1<br />P2<br />PF1
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-1<br />CSA C22.2 No 14<br />JIS C8201-5-1<br />IEC 60947-5-4<br />IEC 60947-5-1<br />UL 508<br />IEC 60947-5-5<br />JIS C8201-1
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
6 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011

Specifications may be subject to change without notice
