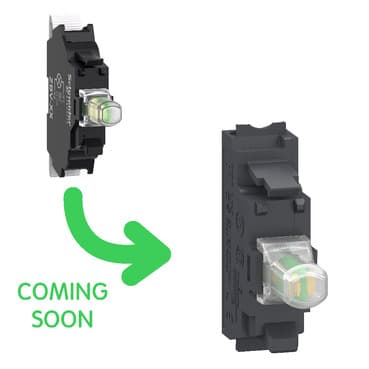

schneider ZBVM15

Selling Points

  • 1Integral LED Lamp: The ZBVM15 features a universal LED lamp for clear illumination.
  • 2Spring Clamp Terminal: Equipped with spring clamp terminals for easy installation and replacement.
  • 3IP20 Protection: Provides protection against unexpected contact with live circuits, ensuring operator safety.
  • 4Wide Operating Temperature Range: Compatible with temperatures from -40°C to 70°C, offering versatility in usage.
  • 5Fast and Easy Replacement: Designed for quick and simple configuration of signaling units, reducing downtime.
Product Details
ZBVM15
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony XB5<br />Harmony XB4
Product or Component Type
Light block
Device short name
ZBV
Sale per indivisible quantity
5
Connections - terminals
Push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1<br />Push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Signalling type
Steady
Light source
Universal LED
Bulb base
Integral LED
Light block supply
Direct
Light source colour
White
[Us] rated supply voltage
230...240 V
CAD overall width
1.4 in (35.6 mm)
CAD overall height
0.6 in (14.8 mm)
CAD overall depth
0.4 in (9.8 mm)
Net Weight
0.011 lb(US) (0.005 kg)
Supply voltage limits
195…264 V AC
current consumption
19 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Mounting of block
Front mounting
Device presentation
Basic element
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…158 °F (-40…70 °C)
IP degree of protection
IP20 IEC 60529
Standards
IEC 60947-1<br />IEC 60947-5-1<br />IEC 60947-5-4<br />IEC 60947-5-5<br />UL 60947-1<br />UL 60947-5-1<br />UL 60947-5-5<br />UL 1059<br />UL 486E<br />CSA C22.2 No 60947-1<br />CSA C22.2 No 60947-5-1<br />CSA C22.2 No 158<br />CSA C22.2 No 65<br />IACS E10<br />GB/T 14048.5
Product Certifications
BV<br />LROS (Lloyds register of shipping)<br />EAC<br />IECEE CB Scheme<br />CCC<br />UL<br />DNV-GL<br />CSA
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011
