Product Model

ZBY9W3B330

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

28672

In Stock
Last updated: 2025/4/20
View Specifications

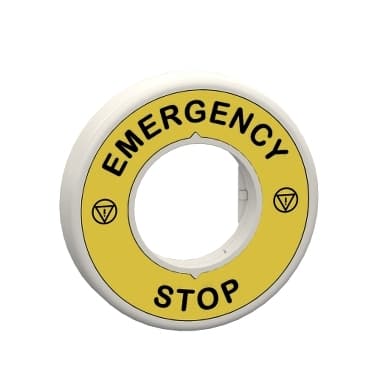

schneider ZBY9W3B330

Selling Points

  • 1Illuminated Emergency Stop Ring: Features an integral LED for clear visibility in emergency situations.
  • 224V AC/DC Compatibility: Operates on both 24V AC and DC, ensuring versatility in various industrial settings.
  • 3Robust Design: Made from durable plastic, designed to withstand harsh environments and high-pressure washers.
  • 4Easy Assembly & Disassembly: Quick and easy installation and removal for convenient maintenance.
  • 5Compliant with Safety Standards: Meets IEC 60947-1 and IEC 61140 standards for electrical insulation and safety.
Product Details
ZBY9W3B330
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony
Product or Component Type
Illuminated marked legend ring
Sale per indivisible quantity
1
Shape of signaling unit head
Round
cap/operator or lens colour
2 colours choice
Operator additional information
With illuminated ring
Light source
Protected LED
Bulb base
Integral LED
Light source colour
White or red
[Us] rated supply voltage
24 V AC/DC 50/60 Hz
Device presentation
Intermediate ring
Accessory / separate part destination
Emergency stop mushroom head push-button
Material
Plastic
Marking
Black EMERGENCY STOP yellow
Label dimensions
Ø 60 mm
User Language
English
Height
2.4 in (60 mm)
Width
0.4 in (9.3 mm)
Net Weight
0.035 lb(US) (0.016 kg)
Electrical insulation class
Class II IEC 61140
Resistance to high pressure washer
1015.3 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
[Ui] rated insulation voltage
24 V 3)IEC 60947-1
Signalling type
Steady
Supply voltage limits
19.2…30 V DC<br />21.6…26.4 V AC
Current Consumption
18 mA
Service life
100000 h at rated voltage and 25 °C
Surge withstand
1 kV IEC 61000-4-5
Compatibility code
XB4<br />XB5
Protective treatment
TH
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation
-40…131 °F (-40…55 °C)
Overvoltage category
Class II
IP degree of protection
IP66 IEC 60529<br />IP67 IEC 60529<br />IP69 IEC 60529<br />IP69K ISO 20653<br />Type 13 UL 50E<br />Type 12 UL 50E<br />Type 4 UL 50E<br />Type 4X UL 50E
IK degree of protection
IK05 conforming to IEC 62262
Standards
CSA C22.2 No 14<br />IEC 60947-5-1<br />IEC 60947-5-4<br />UL 508<br />IEC 60947-1<br />JIS C8201-5-1<br />JIS C8201-1
Product Certifications
UL Listed<br />CSA
Vibration resistance
5 gn 10…500 Hz)IEC 60068-2-6<br />25 mm peak to peak 2…10 Hz)IEC 60068-2-6
Shock resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27<br />50 gn 11 ms) half sine wave acceleration IEC 60068-2-27<br />25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Resistance to fast transients
2 kV IEC 61000-4-4
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3
Resistance to electrostatic discharge
4 kV on contact (on metal parts) IEC 61000-4-2<br />8 kV in free air (in insulating parts) IEC 61000-4-2
Electromagnetic emission
Class B IEC 55011
