schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBYLEG201000

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

28765

In Stock
Last updated: 2025/4/20
View Specifications

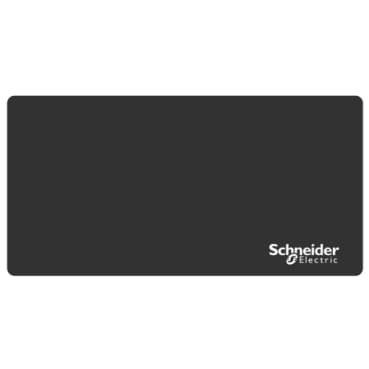

schneider ZBYLEG201000

Selling Points

  • 1Customizable with any legends desired to support machines and operations.
  • 2Antimicrobial properties for enhanced hygiene in industrial settings.
  • 3Robust design to withstand harsh environments.
  • 4Quick and easy assembly and disassembly.
  • 5Compatible with various connection types: screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
Product Details
ZBYLEG201000
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product or Component Type
Legend panel
accessory / separate part category
Marking accessories
Material
Plastic
Device Composition
Blank panel
Accessory / separate part destination
Ø 16 mm control and signalling units<br />Ø 22 mm control and signalling units<br />Ø 30 mm control and signalling units<br />For standard head
Range Compatibility
Harmony XB4<br />Harmony XB5<br />Harmony XB6<br />Harmony 9001K
Legend holder size
200 x 100
Marking
unmarked
Net Weight
0.022 lb(US) (0.010 kg)
Standards
ISO 21702<br />ISO 22196:2011

Specifications may be subject to change without notice
