schneiderPushbuttons, Switches, Pilot Lights, Control Stations and Joysticks
Product Model

ZBYLEG401001

Manufacturer

schneider

Category

Pushbuttons, Switches, Pilot Lights, Control Stations and Joysticks

Product ID

28776

In Stock
Last updated: 2025/4/20
View Specifications

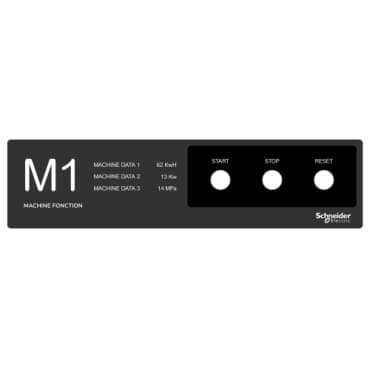

schneider ZBYLEG401001

Selling Points

  • 1Quick and easy assembly and disassembly.
  • 2Robustness to withstand harsh environments.
  • 3Compatible with various types of connections: screw clamp, connector, Faston connector, spring terminal, or printed circuit board.
  • 4Eco-friendly packaging made with recycled cardboard.
  • 5Designed to support Schneider Electric's Net Zero status by 2050 through supply chain partnerships and circularity initiatives.
Product Details
ZBYLEG401001
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product or Component Type
Legend panel
accessory / separate part category
Marking accessories
Material
Plastic
Device Composition
Marked panel
Accessory / separate part destination
Ø 16 mm control and signalling units<br />Ø 22 mm control and signalling units<br />Ø 30 mm control and signalling units<br />For standard head
Range Compatibility
Harmony XB4<br />Harmony XB5<br />Harmony XB6<br />Harmony 9001K
Legend holder size
400 x 100
Net Weight
0.022 lb(US) (0.010 kg)
Standards
ISO 21702<br />ISO 22196:2011

Specifications may be subject to change without notice
