Product Model

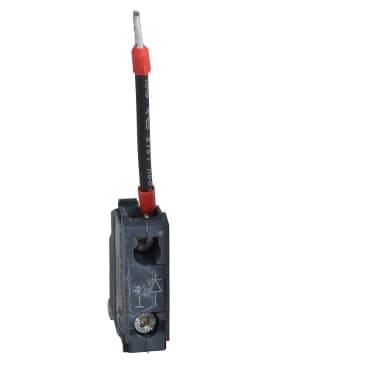

ZBZG156
Selling Points
- 1Integral LED for Clear Visibility: The ZBZG156 features an integral LED light block for clear visibility in test light functions.
- 2Wide Voltage Compatibility: Compatible with 12, 24, and 24-120V AC/DC, making it versatile for various applications.
- 3Robust Electrical Shock Protection: Class I Harmony XB4 and Class II Harmony XB5 protection ensure safe operation.
- 4Durable Plastic Construction: Made from high-quality plastic, ensuring durability and long-lasting performance.
- 5Compliant with International Standards: Meets standards like CSA C22-2 No 14, EN 60947-1, and IEC 60947-5-1 for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony XB4<br />Harmony XB5 | Product or Component Type | Block for test light |
Product Compatibility | Integral LED<br />BA 9s | Light block type | Single block for test light function |
[Us] rated supply voltage | 12 V AC/DC<br />24 V AC/DC<br />24...120 V AC/DC | Electrical Connection | 1 wire |
Material | Plastic | Electrical shock protection class | Class I Harmony XB4 IEC 60536<br />Class II Harmony XB5 IEC 60536 |
Net Weight | 0.02 lb(US) (0.01 kg) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Standards | UL 508<br />IEC 60947-5-5<br />IEC 60947-1<br />IEC 60947-5-4<br />IEC 60947-5-1<br />IEC 60947-5-5<br />IEC 60947-5-4<br />CSA C22.2 No 14<br />IEC 60947-1<br />IEC 60947-5-1<br />JIS C 4520 |
Product Certifications | DNV<br />UL Listed<br />LROS (Lloyds register of shipping)<br />BV<br />CSA | Vibration resistance | 5 gn 2…500 Hz)IEC 60068-2-6 |
Shock resistance | 30 gn 18 ms IEC 60068-2-27<br />50 gn 11 ms IEC 60068-2-27 |
Specifications may be subject to change without notice
