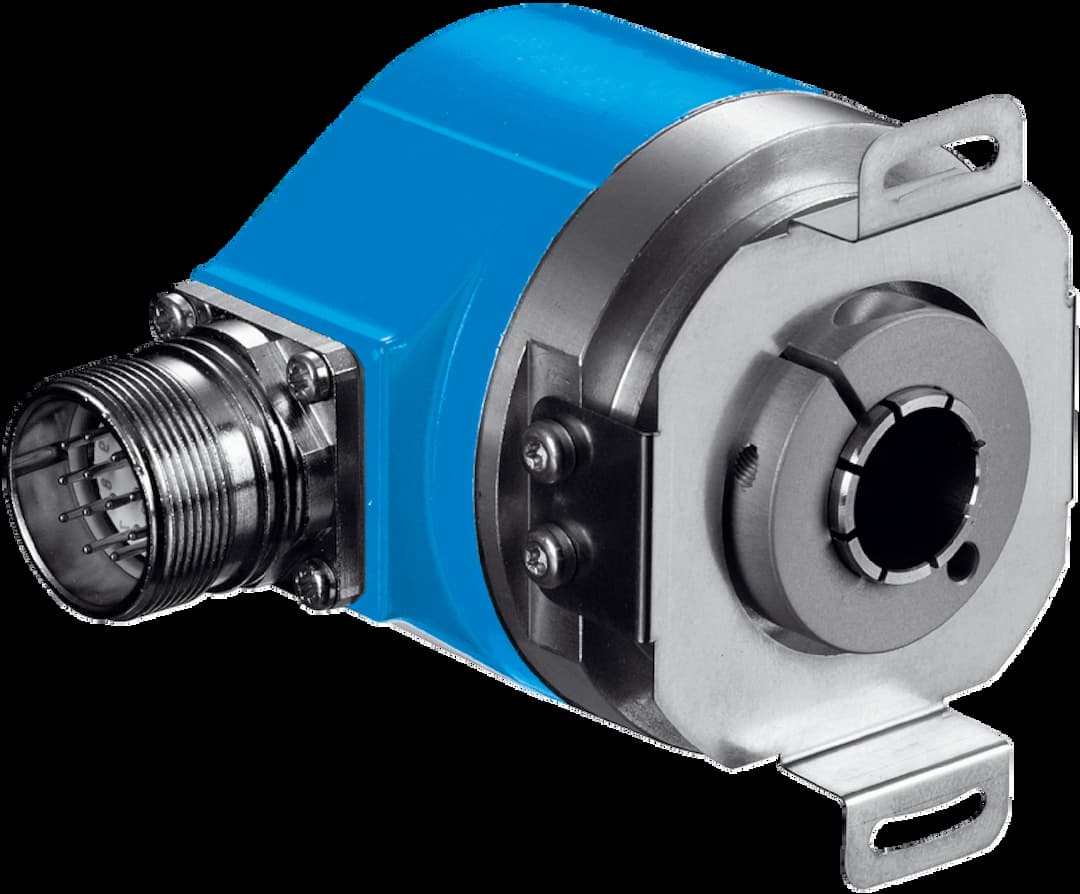

Product Model
ARS60-FAA00512
Selling Points
- 1High precision with up to 512 steps per revolution.
- 2Robust mechanical design with blind hollow shaft and aluminum die cast housing.
- 3Reliable operation in a wide temperature range from -20°C to +85°C.
- 4Excellent error limits of 0.035° (binary) and 0.046° (non-binary).
- 5Durable with a bearing lifetime of 3.6 x 10^9 revolutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of steps per revolution (max. resolution) | 512 (9 bit) | Measuring step | 360° /number of steps |
Measuring step deviation | 0.005° binary number of steps | Error limits G | 0.035° (binary number of steps) |
Repeatability standard deviation σr | 0.005° | Communication interface | Parallel data world |
Initialization time | 80 ms | Code type | Gray |
Code sequence parameter adjustable | CW (clockwise) increasing when viewing the clockwise rotating shaft | Measured value backlash | 0.005° |
Response threshold | 0.003° | Connection type | Male connector, M23, 21-pin, radial |
Supply voltage | 10 ... 32 V | Operating current | Typ. 90 mA |
MTTFd: mean time to dangerous failure | 300 years (EN ISO 13849-1) | Switching level of control inputs | Logic H = 0.7 x U#!#, Logic L = 0 V ... 0.3 x U |
Actuation of set button | ≥ 100 ms | Mechanical design | Blind hollow shaft |
Shaft diameter | 15 mm | Weight | Approx. 0.3 kg |
Housing material | Aluminum die cast | Start up torque | Typ. 0.6 Ncm |
Operating torque | Typ. 0.4 Ncm | Permissible movement static | ± 0.3 mm (radial)#!#± 0.5 mm (axial) |
Permissible movement dynamic | ± 0.1 mm (radial)#!#± 0.2 mm (axial) | Operating speed | ≤ 3,000 min⁻¹ |
Moment of inertia of the rotor | See figure | Bearing lifetime | 3.6 x 10#!#revolutions |
Angular acceleration | ≤ 500,000 rad/s² |
