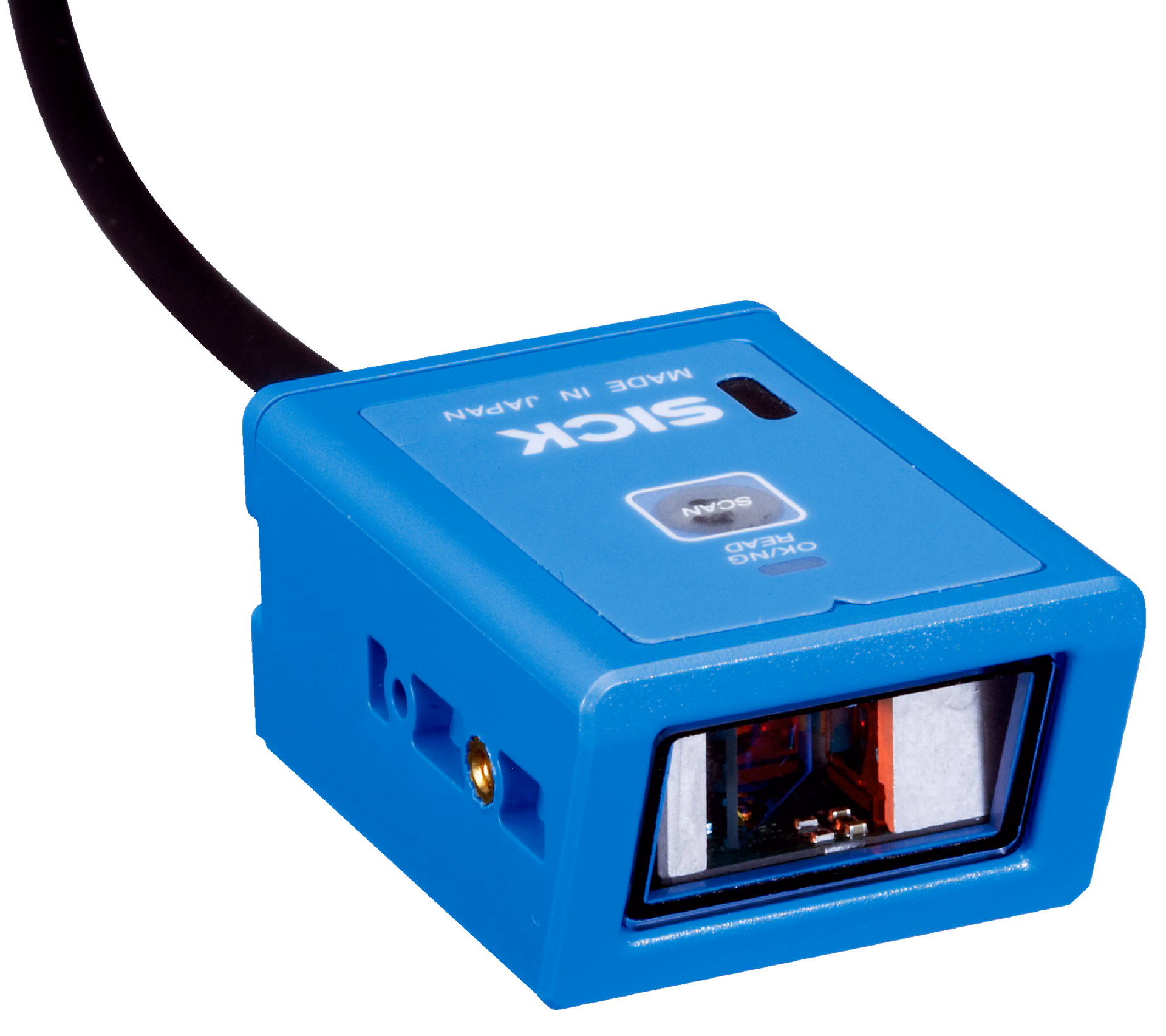

Product Model
CLV503-0000
Selling Points
- 1Extremely compact and lightweight design.
- 2Fast and reliable decoding even on poorly printed or partly damaged codes.
- 3Easy commissioning using configuration bar codes and an online tool.
- 4Pushbutton trigger, onboard LED, and audible beep simplify setup and troubleshooting.
- 5Available in RS-232 version with flying leads and USB version for versatile connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Mid Range | Connection type | Cable |
Reading field | Front | Sensor type | Line scanner |
Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 650 nm |
Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) | Aperture angle | ≤ 44° |
Reading distance | 50 mm ... 630 mm | Scanning frequency | ≤ 100 Hz |
Code resolution | 0.15 mm ... 1 mm | Connection type | 1 x Cable open cable end (1,5 m) |
Supply voltage | 5 V DC, ± 10 % | Power consumption | typ. 85 ... 150 mA |
Housing color | Light blue (RAL 5012) | Window material | Plastic |
Enclosure rating | IP45 | Protection class | III |
Weight | + 18.5 g, without cable | Dimensions (L x W x H) | 30 mm x 43.3 mm x 20 mm |
MTBF | 10,000 h | Readable code structures | 1D codes |
Bar code types | Code 11, Code 39, Code 128, Code 93, Codabar, JAN, UPC / GTIN / EAN, Interleaved 2 of 5, 2/5 Industrial, Matrix 2 of 5, China Post, GS1 DataBar (Expanded, Limited, Truncated, 14 Stacked, Expanded Stacked, Stacked, with Composite A/B), IATA, ISBN-ISMN-ISSN, Korea Post, MSI/Plessey, UK/Plessey, S-Code, Telepen, Code 39 Trioptic | Code printing process | Label (printed codes) |
Serial_Data transmission rate | ≤ 115.2 kBaud | Digital inputs | 1 (Reading pulse trigger) |
Digital outputs | 2 (“Good Read” / “No Read”) | Reading pulse | Button at housing, serial command, Digital input |
Optical indicators | 1 LED | Acoustic indicators | Beeper/buzzer |
