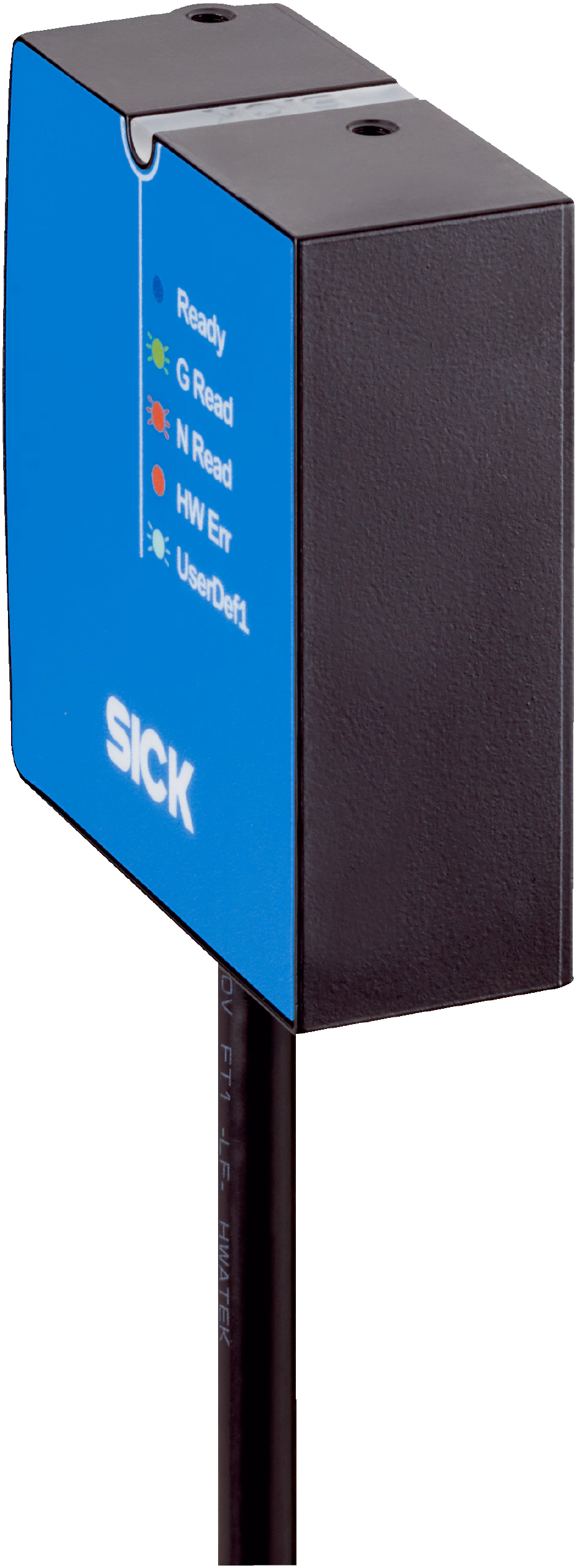

Product Model
CLV601-1D200
Selling Points
- 1High Resolution: Features a CMOS line sensor with a resolution of 2,048 pixels for precise barcode reading.
- 2Versatile Compatibility: Reads all current code types, including Code 39, Code 128, and UPC/GTIN/EAN.
- 3Robust Design: Constructed with zinc diecast housing and IP40 rating for durability and protection.
- 4Flexible Configuration: Supports serial and RS-232 interfaces with adjustable data transmission rates.
- 5Reliable Performance: Offers a scanning frequency of 750 Hz and a reading distance of 15 mm to 70 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Connection type | Cable | Reading field | Side |
Sensor type | Line scanner | Optical focus | Fixed focus (31 mm) |
Sensor | CMOS line sensor | Sensor resolution | 2,048 px |
LED class | Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09) | Light source | Light spot, LED, Visible, Red, 626 nm |
Aperture angle | ≤ 71° | Reading distance | 15 mm ... 70 mm |
Scanning frequency | 750 Hz | Reading angle_Tilt α | ± 5° (with code resolution ≥ 0.125 mm)± 10° (with code resolution ≥ 0.15 mm)± 15° (with code resolution ≥ 0.2 mm)± 25° (with code resolution ≥ 0.35 mm) |
Reading angle_Pitch β | ± 6° (with code resolution ≥ 0.2 mm)± 15° (with code resolution ≥ 0.5 mm) | Reading angle_Skew γ | ± 20° (with code resolution ≥ 0.2 mm)± 30° (with code resolution ≥ 0.5 mm) |
Code resolution | 0.125 mm ... 0.5 mm | Connection type | 1 x 9-pin D-sub male connector (2 m) |
Supply voltage | 5 V DC, ± 10 % | Power consumption | Typ. 1 W |
Housing material | Zinc diecast | Housing color | Light blue (RAL 5012), black (RAL 9005) |
Window material | Plastic | Enclosure rating | IP40 (DIN 40 050) |
Protection class | III (VDE 0106/IEC 1010-1) | Weight | 230 g, with connecting cable |
Dimensions (L x W x H) | 55 mm x 52 mm x 20 mm | MTBF | 100,000 h |
Readable code structures | 1D codes | Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5 |
Code printing process | Label (printed codes) | Print ratio | 2:1 ... 3:1 |
No. of codes per scan | 1 ... 1 | No. of codes per reading interval | 1 ... 15 (auto-discriminating) |
No. of characters per reading interval | 450 | Number of characters per code | ≤ 30 |
No. of multiple readings | 1 ... 100 | Serial_Function | Data interface (read result output), Service interface |
Serial_Data transmission rate | 2,400 Baud ... 250 kBaud, AUX: 57.6 kBaud | Digital inputs | 1 (“Input 1”, Vin = max. 30 V) |
Digital outputs | 2 (“Output 1”, “Output 2”, Iout = max. 50 mA) | Reading pulse | Start: Digital input, free, command, auto pulse, stop: Digital input, free, command, timer, Good Read |
Optical indicators | 1 RGB LED (multifunctional) | Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) |
Configuration software | SOPAS ET | Items supplied | Single scanner, Safety Notes |
Specifications may be subject to change without notice
