Product Model

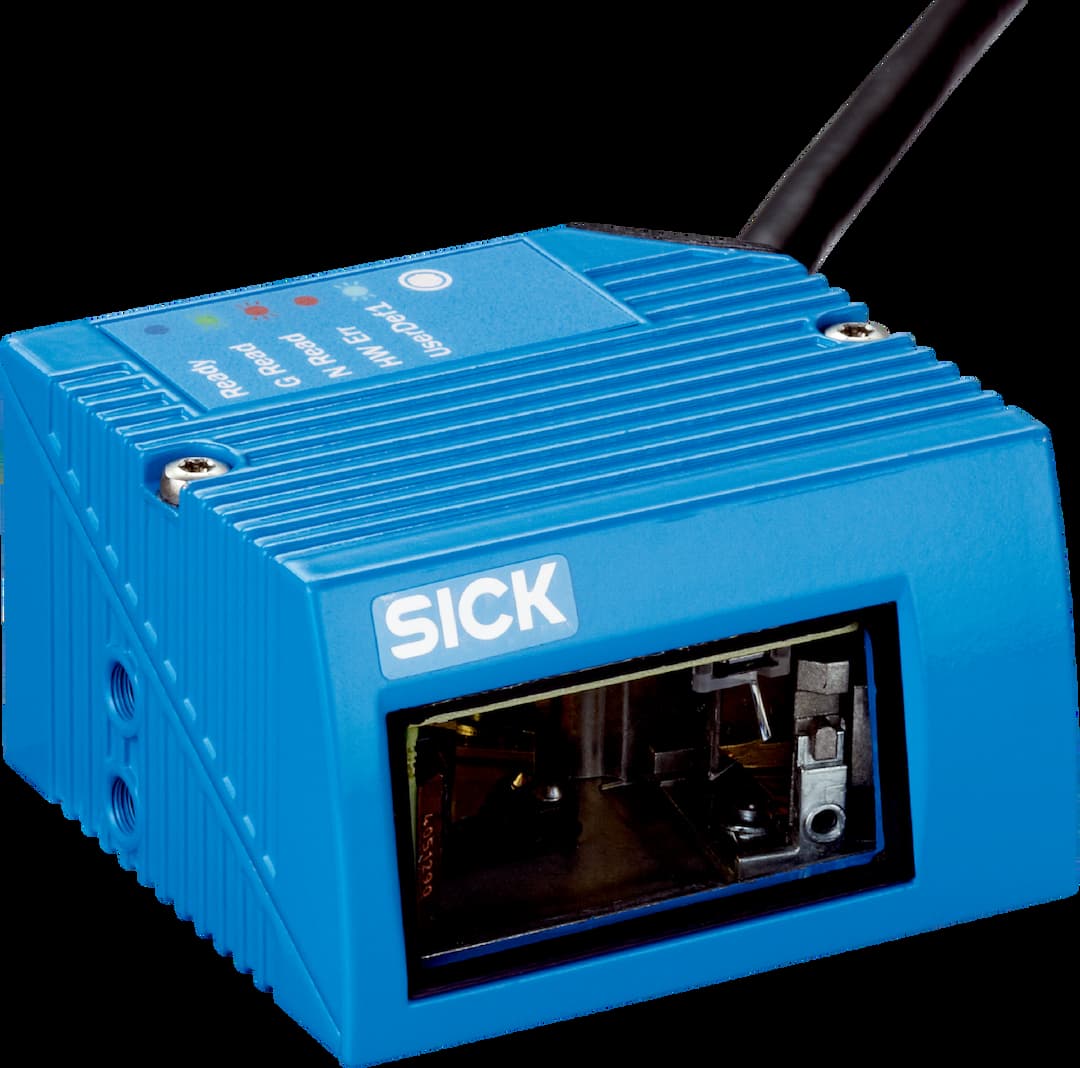

CLV612-C1000
Selling Points
- 1Compact Design: Easily integrates into confined spaces with a compact housing.
- 2Flexible Connectivity: Supports multiple interfaces including CAN bus, PROFIBUS DP, and serial communication.
- 3High Reading Performance: Reads damaged, dirty, and partially obscured barcodes with SMART620 code reconstruction.
- 4Optimized Reading Field: Ideal for container identification on conveyor belts with an intuitive SOPAS ET user interface.
- 5Reduced Wiring Effort: Uses existing Asi cables for voltage supply, minimizing wiring effort and installation time.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Short Range | Connection type | Cable |
Reading field | Front | Sensor type | Raster scanner |
Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 655 nm |
Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) | Aperture angle | ≤ 50° |
Reading distance | 43 mm ... 93 mm | Scanning frequency | 400 Hz ... 1,000 Hz |
Code resolution | 0.1 mm ... 0.2 mm | Raster height, number of lines, at distance | 15 mm, 8, 200 mm |
Connection type | 1 x 15-pin D-Sub HD male connector (0.9 m) | Supply voltage | 10 V DC ... 30 V DC |
Power consumption | 2.8 W | Housing material | Aluminum die cast |
Housing color | Light blue (RAL 5012) | Window material | Glass |
Enclosure rating | IP65 (DIN 40 050) | Protection class | III (VDE 0106/IEC 1010-1) |
Weight | 265 g, with connecting cable | Dimensions (L x W x H) | 61 mm x 66 mm x 38 mm |
MTBF | 100,000 h | MTTF | 40,000 h (Laser diode) |
Readable code structures | 1D codes | Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode |
Code printing process | Label (printed codes) | Print ratio | 2:1 ... 3:1 |
No. of codes per scan | 1 ... 10 (Standard decoder)#!#1 ... 6 (SMART620) | No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
No. of characters per reading interval | 1,500#!#500 (for multiplexer function in CAN operation) | No. of multiple readings | 1 ... 99 |
Serial_Function | Data interface (read result output), Service interface | Serial_Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud |
CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) | CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s |
Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) | Digital outputs | 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420) |
Reading pulse | Digital inputs, non-powered, serial interface, auto pulse, CAN | Optical indicators | 1 RGB LED (multifunctional) |
Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) | Configuration software | SOPAS ET |
Items supplied | Single scanner |
Specifications may be subject to change without notice
