Product Model

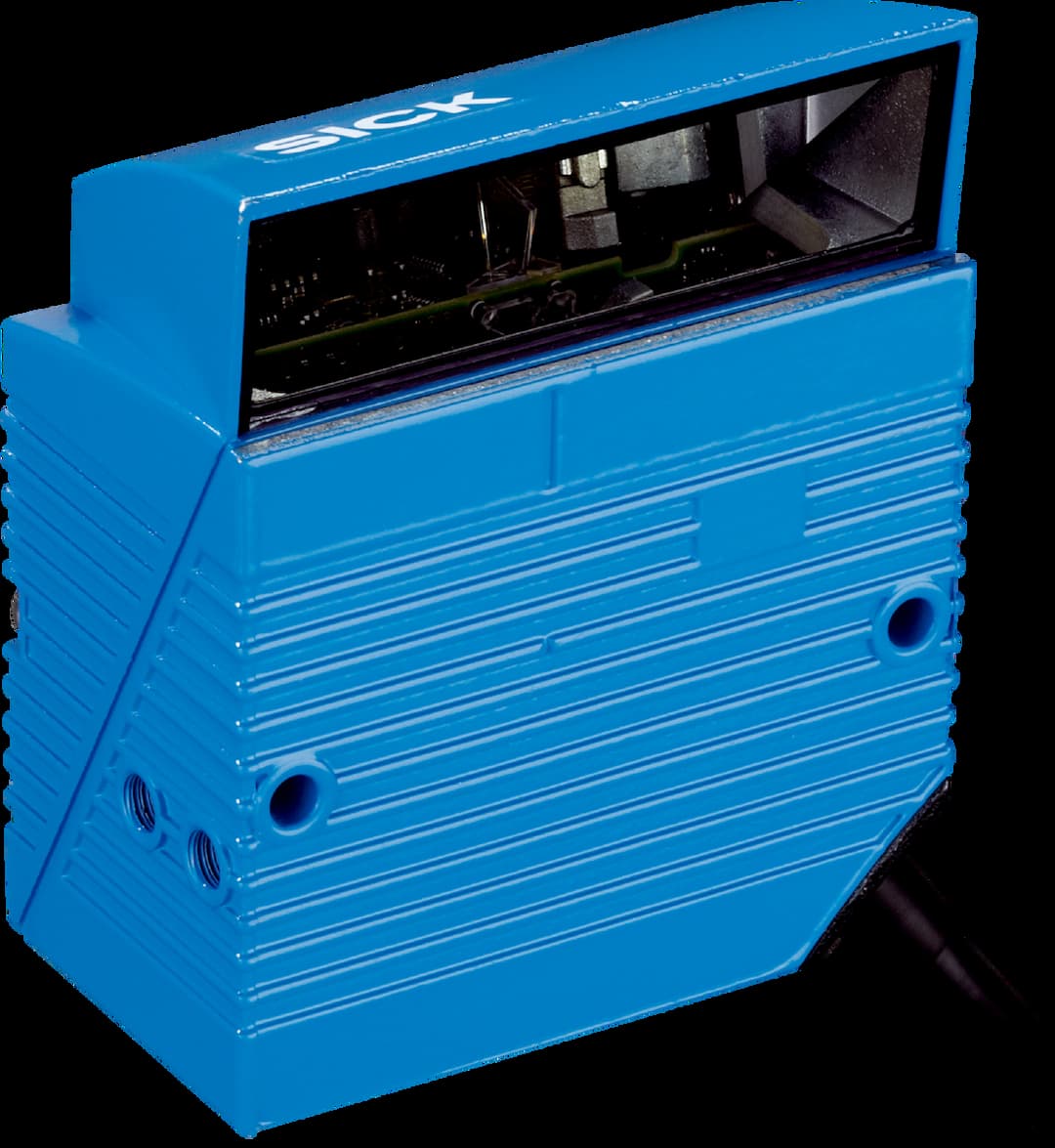

CLV615-F3000
Selling Points
- 1Designed for container identification on conveyor belts with an intuitive SOPAS user interface.
- 2Supports PROFINET, EtherNet/IP, EtherCAT, CANopen, and serial communication for seamless integration.
- 3Enables easy installation even in applications with limited space.
- 4Simplifies integration into existing conveyor systems with minimal programming required.
- 5Features an optional configuration cloning module for rapid scanner replacement without reconfiguration via a laptop/PC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Long Range | Connection type | Cable |
Reading field | Side (105°) | Sensor type | Raster scanner |
Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 655 nm |
Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) | Aperture angle | ≤ 50° |
Reading distance | 25 mm ... 330 mm | Scanning frequency | 400 Hz ... 1,000 Hz |
Code resolution | 0.35 mm ... 0.5 mm | Connection type | 1 x 15-pin D-Sub HD male connector (0.9 m) |
Supply voltage | 10 V DC ... 30 V DC | Power consumption | 2.8 W |
Housing material | Aluminum die cast | Housing color | Light blue (RAL 5012) |
Window material | Glass | Enclosure rating | IP65 (DIN 40 050) |
Protection class | III (VDE 0106/IEC 1010-1) | Weight | + 295 g, with connecting cable |
Dimensions (L x W x H) | 80 mm x 66 mm x 38 mm | MTBF | 100,000 h |
MTTF | 40,000 h (Laser diode) | Readable code structures | 1D codes |
Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode | Code printing process | Label (printed codes) |
Print ratio | 2:1 ... 3:1 | No. of codes per scan | 1 ... 10 (Standard decoder)#!#1 ... 6 (SMART620) |
No. of codes per reading interval | 1 ... 50 (auto-discriminating) | No. of characters per reading interval | 1,500#!#500 (for multiplexer function in CAN operation) |
No. of multiple readings | 1 ... 99 | PROFINET_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
PROFINET_Function | PROFINET Single Port, PROFINET Dual Port | Serial_Function | Data interface (read result output), Service interface |
Serial_Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud | CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) |
CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s | PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
EtherCAT_Type of fieldbus integration | Optional over external fieldbus module CDF600 | Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) |
Digital outputs | 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420) | Reading pulse | Digital inputs, non-powered, serial interface, auto pulse, CAN |
Optical indicators | 1 RGB LED (multifunctional) | Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) |
Configuration software | SOPAS ET | Items supplied | Single scanner |
