Product Model

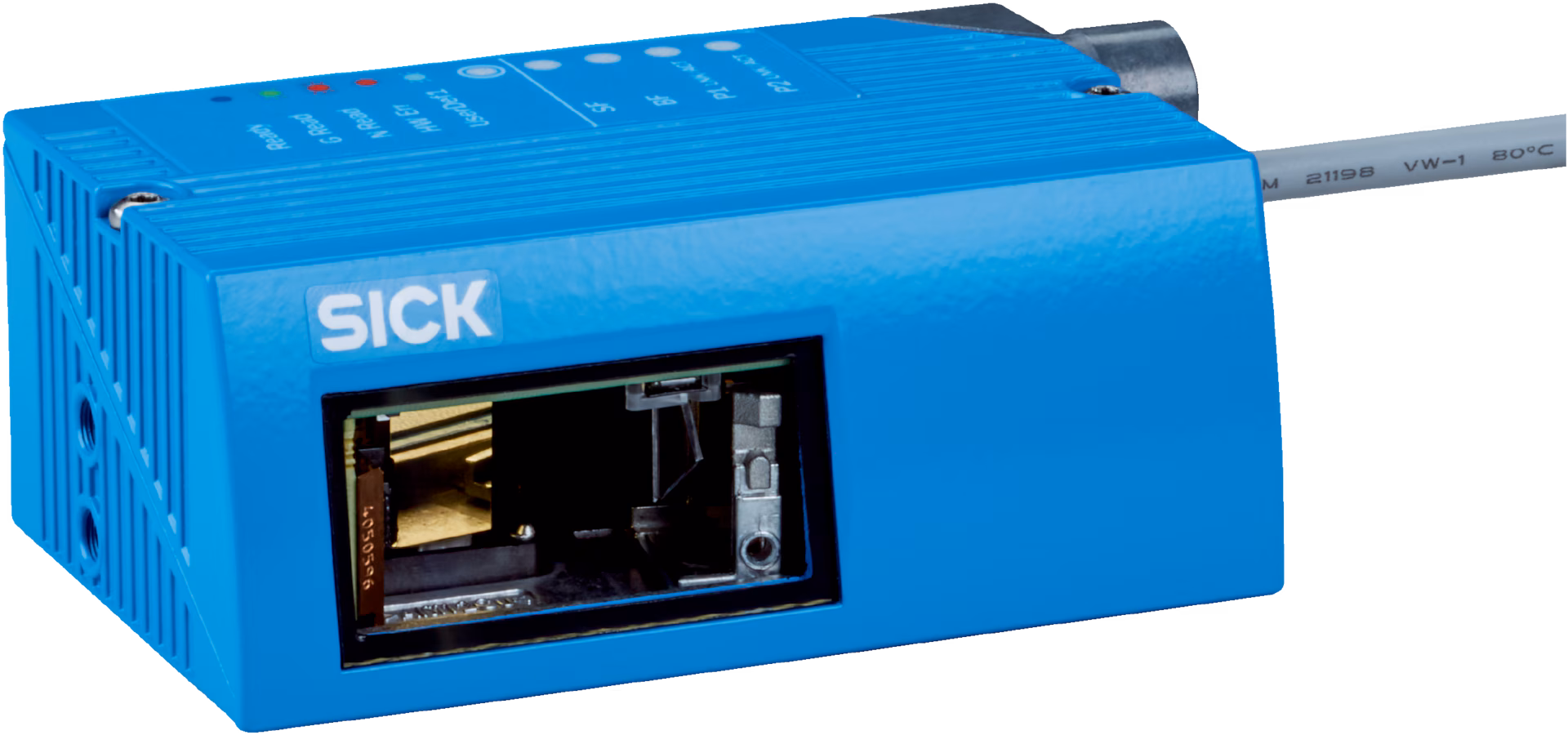

CLV618-D1520
Selling Points
- 1Flexible Interfaces: Supports PROFINET, USB, and EtherCAT for seamless integration into various control systems.
- 2High Reading Performance: Reads damaged, contaminated, and partially obscured barcodes with SMART620 code reconstruction.
- 3Compact Design: Ideal for tight installation spaces with a compact housing and swivel connector for easy mounting.
- 4Robust Industrial Design: IP65-rated enclosure and protection class III ensure durability in harsh environments.
- 5Long Reading Distance: Reads barcodes up to 705 mm with a scanning frequency of 400 Hz to 1,000 Hz.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Long Range | Connection type | Cable |
Reading field | Front | Sensor type | Raster scanner |
Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 655 nm |
Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) | Aperture angle | ≤ 50° |
Reading distance | 58 mm ... 705 mm | Scanning frequency | 400 Hz ... 1,000 Hz |
Code resolution | 0.35 mm ... 1 mm | Raster height, number of lines, at distance | 15 mm, 8, 200 mm |
Connection type | 1 x “POWER” connection, 5-pin M12 plug, A-coded#!#1 x “PROFINET P1” connection, 4-pin M12 female connector, D-coded#!#1 x “PROFINET P2” connection, 4-pin M12 socket, D-coded#!#1 x Micro USB female connector, type B | Supply voltage | 10 V DC ... 30 V DC |
Power consumption | 5 W | Housing material | Aluminum die cast |
Housing color | Light blue (RAL 5012) | Window material | Glass |
Enclosure rating | IP65 (DIN 40 050) | Protection class | III (VDE 0106/IEC 1010-1) |
Weight | 290.5 g | Dimensions (L x W x H) | 61 mm x 96 mm x 38 mm |
MTBF | 100,000 h | MTTF | 40,000 h (Laser diode) |
Readable code structures | 1D codes | Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode |
Code printing process | Label (printed codes) | Print ratio | 2:1 ... 3:1 |
No. of codes per scan | 1 ... 10 (Standard decoder)#!#1 ... 6 (SMART620) | No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
No. of characters per reading interval | 1,500 | No. of multiple readings | 1 ... 99 |
PROFINET_Function | PROFINET Single Port, PROFINET Dual Port | PROFINET_Data transmission rate | 2-port Ethernet in accordance with IEEE 802.3 (baud rate 100 MBit/s, full-duplex transmission, 2-port switch, auto-negotiation, auto-crossover). Maximum data length is limited by the mode of communication (fragmentation protocol) to 4,000 bytes. |
USB_Function | Service interface | Digital inputs | 2 (1 x “Sensor 1”, 1 x via PROFINET Ctrl bits) |
Digital outputs | 4 (via PROFINET Ctrl bits) | Reading pulse | Non-powered, auto pulse, Fieldbus input, command, Digital input |
Optical indicators | 5 LEDs | Configuration software | SOPAS ET |
Specifications may be subject to change without notice
