Product Model

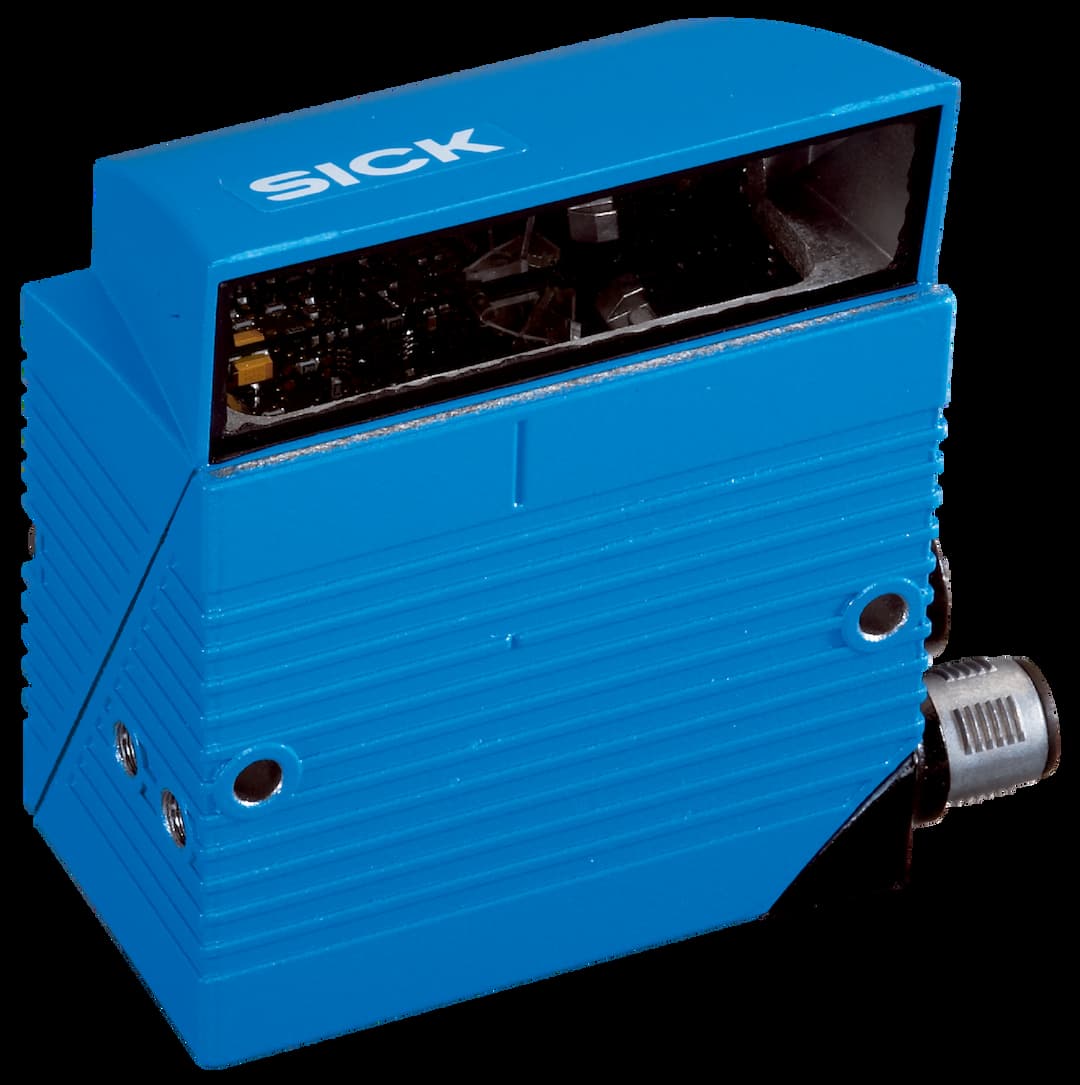

CLV622-3120
Selling Points
- 1The CLV622-3120 features SMART620 code reconstruction technology for high read rates on damaged and obscured codes.
- 2With dimensions of 80 mm x 66 mm x 38 mm, it fits easily into compact machines.
- 3Utilize SOPAS configuration software for easy setup and advanced logical operations.
- 4Integrated Ethernet allows processing in networks without additional gateways, saving time and costs.
- 5Supports multiple interfaces including Ethernet, CAN, and PROFINET, making it versatile for various automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Short Range | Connection type | Ethernet |
Reading field | Side (105°) | Sensor type | Raster scanner |
Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 655 nm |
Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) | Aperture angle | ≤ 50° |
Reading distance | 55 mm ... 200 mm | Scanning frequency | 400 Hz ... 1,200 Hz |
Code resolution | 0.15 mm ... 0.5 mm | Raster height, number of lines, at distance | 15 mm, 8, 185 mm |
Connection type | 2 x M12 cylindrical connectors (12-pin male connector, 4-pin female connector) on swivel connector | Supply voltage | 10 V DC ... 30 V DC |
Power consumption | 4.5 W | Housing material | Aluminum die cast |
Housing color | Light blue (RAL 5012) | Window material | Glass |
Enclosure rating | IP65 (DIN 40 050) | Protection class | III (VDE 0106/IEC 1010-1) |
Weight | 230 g, without connecting cable | Dimensions (L x W x H) | 80 mm x 66 mm x 38 mm |
MTBF | 100,000 h | MTTF | 40,000 h (Laser diode) |
Readable code structures | 1D codes | Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
Code printing process | Label (printed codes) | Print ratio | 2:1 ... 3:1 |
No. of codes per scan | 1 ... 20 (Standard decoder)#!#1 ... 6 (SMART620) | No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
No. of characters per reading interval | 1,500#!#500 (for multiplexer function in CAN operation) | No. of multiple readings | 1 ... 99 |
Ethernet_Function | Data interface (read result output), Service interface | Ethernet_Data transmission rate | 10/100 MBit/s |
PROFINET_Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) | PROFINET_Data transmission rate | 10/100 MBit/s |
EtherNet/IP™_Data transmission rate | 10/100 MBit/s | EtherCAT_Type of fieldbus integration | Optional over external fieldbus module CDF600 |
Serial_Function | Data interface (read result output), Service interface | Serial_Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) | CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s |
CANopen_Data transmission rate | 20 kbit/s ... 1 Mbit/s | PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
Digital inputs | 3 (“Sensor 1”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) | Digital outputs | 2 (Via optional CMC600 parameter memory in CDB620/CDM420) |
Reading pulse | Digital inputs, non-powered, serial interface, auto pulse, CAN | Optical indicators | 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX) |
Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) | Configuration software | SOPAS ET |
Specifications may be subject to change without notice
