Product Model

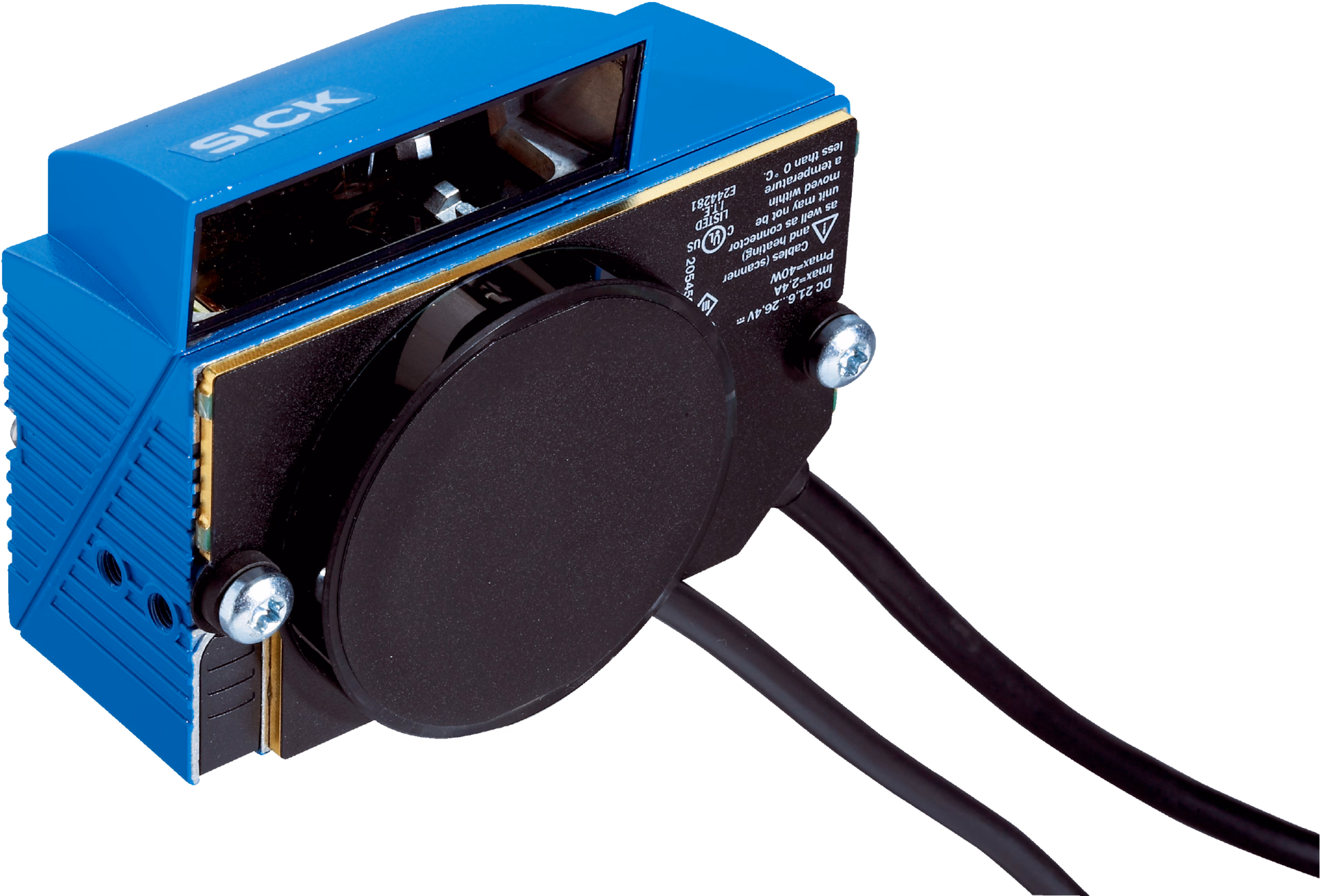

CLV632-3000F0
Selling Points
- 1High-Performance Scanning: Identifies 1D codes with high accuracy and speed, suitable for harsh environments.
- 2Robust Connectivity: Supports PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP interfaces for seamless integration.
- 3Compact Design: Compact and lightweight, measuring 680 mm x 96 mm x 50 mm, with an aluminum die-cast housing.
- 4Durable Construction: IP65-rated enclosure and laser class 2 ensure reliable operation in various conditions.
- 5Versatile Applications: Ideal for warehouse conveyor technology, consumer goods serialization, and food/beverage identification in washdown zones.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Short Range | Connection type | Cable |
Reading field | Side (105°) | Sensor type | Raster scanner |
Optical focus | Fixed focus | Light source | Light spot, laser, Visible, Red, 655 nm |
Light spot | Circular | Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
Aperture angle | ≤ 50° | Reading distance | 44 mm ... 256 mm |
Scanning frequency | 400 Hz ... 1,200 Hz | Code resolution | 0.2 mm ... 0.5 mm |
Raster height, number of lines, at distance | 15 mm, 8, 185 mm | Heating | ✔ |
Cold storage applications | ✔ | Connection type | 1 x 15-pin D-Sub HD male connector (0.9 m)#!#1 x cable, open-ended, 3-wire (2 m) |
Supply voltage | ≤ 24 V DC, ± 10 % | Power consumption | 40 W |
Housing material | Aluminum die cast | Housing color | Light blue (RAL 5012) |
Window material | Glass | Enclosure rating | IP65 (EN 60529) |
Protection class | III (EN 61140) | Weight | 540 g, with connecting cable |
Dimensions (L x W x H) | 80 mm x 96 mm x 50 mm | MTBF | 100,000 h |
MTTF | 40,000 h (Laser diode) | Readable code structures | 1D codes |
Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey | Code printing process | Label (printed codes) |
Print ratio | 2:1 ... 3:1 | No. of codes per scan | 1 ... 20 (Standard decoder)#!#1 ... 6 (SMART decoder) |
No. of codes per reading interval | 1 ... 50 (auto-discriminating) | No. of characters per reading interval | 5,000#!#500 (for multiplexer function in CAN operation) |
No. of multiple readings | 1 ... 99 | PROFINET_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
PROFINET_Function | PROFINET Single Port, PROFINET Dual Port | EtherCAT_Type of fieldbus integration | Optional over external fieldbus module CDF600 |
Serial_Function | Data interface (read result output), Service interface | Serial_Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) | CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s |
CANopen_Data transmission rate | 20 kbit/s ... 1 Mbit/s | PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional parameter storage CMC600 in CDB620/CDM420) | Digital outputs | 4 (“Result 1”, “Result 2”, 2 outputs via optional parameter storage CMC600 in CDB620/CDM420) |
Reading pulse | Digital inputs, non-powered, serial interface, auto pulse, CAN | Optical indicators | 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10 LEDs)) |
Acoustic indicators | Beeper/buzzer (can be switched off, can be allocated as a result indication function) | Control elements | 2 buttons (choose and start/stop functions) |
Configuration software | SOPAS ET | Memory card | MicroSD memory card (flash card), optional |
Note on use | For Ethernet connection please use an Ethernet version of CLV6xx |
Specifications may be subject to change without notice
