Product Model

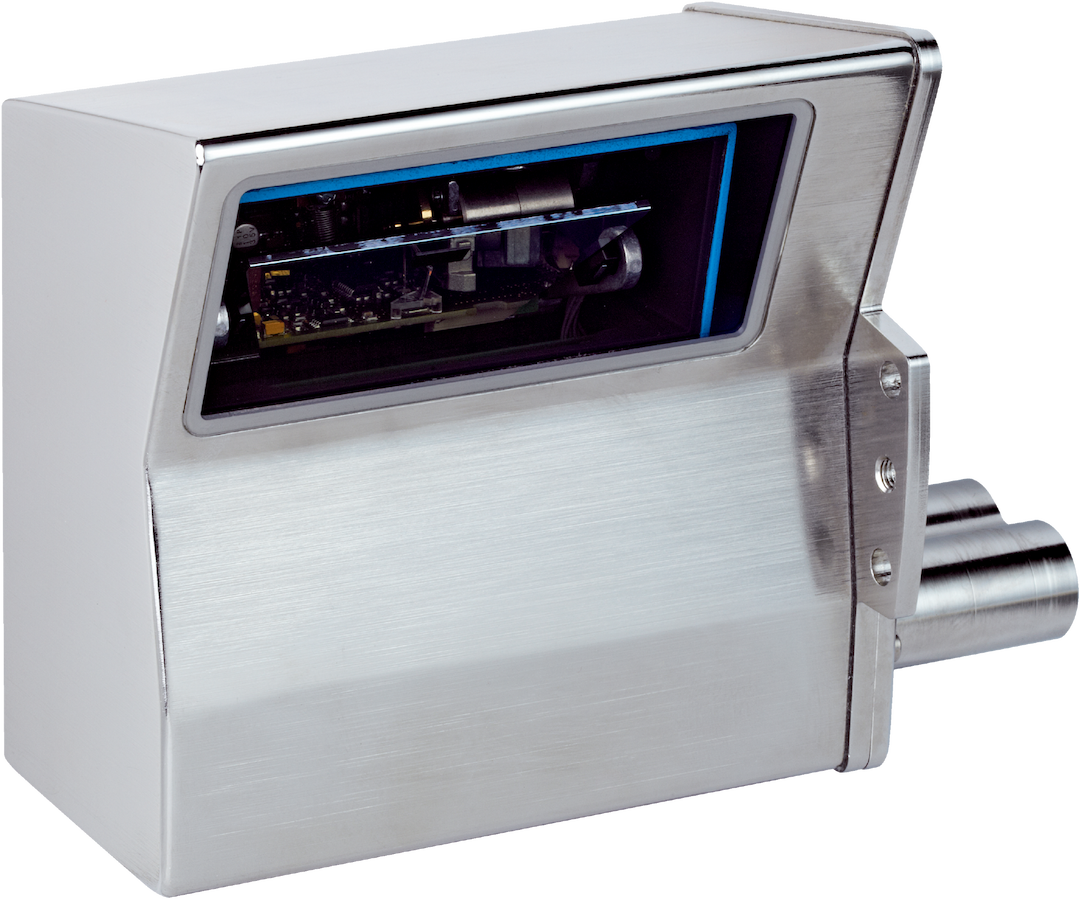

CLV640-0831S01
Selling Points
- 1High Accuracy: Reads all current 1D bar code types including Code 39, Code 128, and GS1-128.
- 2Durable Housing: IP69K protective housing ensures operation in harsh environments.
- 3Versatile Connectivity: Supports Ethernet, TCP/IP, and PROFIBUS DP for seamless integration.
- 4Flexible Focus Control: Offers fixed, dynamic, and auto-focus options for various applications.
- 5Reliable Performance: Operates at scanning frequencies from 400 Hz to 1,200 Hz with code resolution up to 1 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Standard Density | Connection type | Ethernet |
Reading field | Oscillating mirror | Sensor type | Oscillating mirror |
Optical focus | Dynamic focus control | Light source | Light spot, laser, Visible, Red, 655 nm |
Light spot | Circular | Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
Aperture angle | ≤ 50° | Reading distance | 47 mm ... 798 mm |
Scanning frequency | 400 Hz ... 1,200 Hz | Code resolution | 0.2 mm ... 1 mm |
Oscillating mirror functions_Oscillation frequency | 0.5 Hz ... 6.25 Hz | Oscillating mirror functions_Angle of deflection | –20° ... 20° |
Connection type | 2 x M12 cylindrical connectors (1 x 17-pin male connector, 4-pin female connector) | Supply voltage | 18 V DC ... 30 V DC |
Power consumption | 6.5 W | Housing material | Stainless steel |
Housing color | Stainless steel (unpainted) | Window material | Plastic |
Enclosure rating | IP69K (DIN 40 050, part 9) | Protection class | III (EN 61140) |
Weight | 1,230 g, without connecting cable | Dimensions (L x W x H) | 121 mm x 164 mm x 84 mm |
MTBF | 100,000 h | MTTF | 40,000 h (Laser diode) |
Readable code structures | 1D codes | Bar code types | All current code types, Code 39, Code 128, Code 93, Codabar, GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Telepen, MSI/Plessey |
Code printing process | Label (printed codes) | Print ratio | 2:1 ... 3:1 |
No. of codes per scan | 1 ... 20 (Standard decoder)#!#1 ... 6 (SMART decoder) | No. of codes per reading interval | 1 ... 50 (auto-discriminating) |
No. of characters per reading interval | 5,000#!#500 (for multiplexer function in CAN operation) | No. of multiple readings | 1 ... 99 |
Ethernet_Function | Data interface (read result output), Service interface | Ethernet_Data transmission rate | 10/100 MBit/s |
PROFINET_Function | PROFINET Single Port, PROFINET Dual Port (optional via external connection module CDF600-2) | PROFINET_Data transmission rate | 10/100 MBit/s |
EtherNet/IP™_Data transmission rate | 10/100 MBit/s | EtherCAT_Type of fieldbus integration | Optional over external fieldbus module CDF600 |
Serial_Function | Data interface (read result output), Service interface | Serial_Data transmission rate | 2,400 Baud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) | CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s |
CANopen_Data transmission rate | 20 kbit/s ... 1 Mbit/s | PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 |
Digital inputs | 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 in CDB650) | Digital outputs | 4 (“Result 1”, “Result 2”, 2 via optional CMC600 parameter memory in CDB650) |
Reading pulse | Digital inputs, serial interface, auto pulse, CAN | Configuration software | SOPAS ET |
Specifications may be subject to change without notice
