Product Model

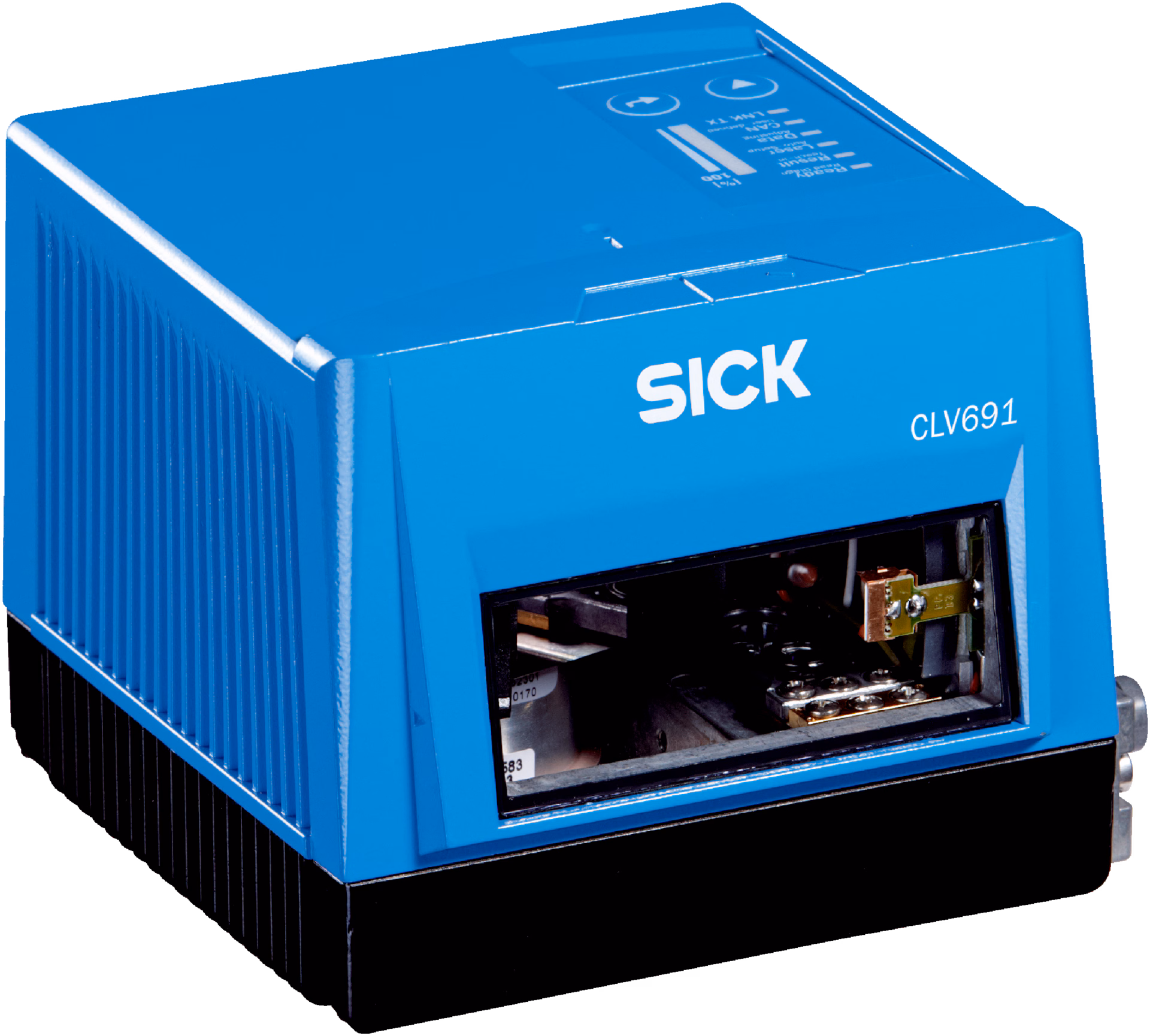

CLV691-0000
Selling Points
- 1High Accuracy & Flexibility: The SICK CLV691-0000 offers exceptional reading performance and accuracy, even on damaged or heavily contaminated bar codes.
- 2Auto Focus Technology: Equipped with auto focus and dynamic focus control, this scanner ensures height-independent code reading within the reading field.
- 3SMART+ Code Reconstruction: Utilizes SMART+ algorithm for higher reading rates on damaged or partially damaged bar codes.
- 4Flexible Connectivity Options: Supports Ethernet, CAN, PROFIBUS DP, DeviceNet, and serial communication protocols for seamless integration into various applications.
- 5Durable Design: Features an IP65 enclosure rating and is made from die-cast aluminum with a glass front screen, ensuring robust performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Version | Low Density | Connection type | Depending on the cloning plug used |
Reading field | Front | Sensor type | Line scanner |
Optical focus | Auto focus (alternative: dynamic focus control) | No. of distance configurations | ≤ 8 |
Focus adjustment time | ≤ 20 ms | Focus trigger source | Data interface / Digital inputs |
Light source | Light spot, laser, Visible, Red, 660 nm | Laser class | 2, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 56” from May 8, 2019 (EN 60825-1:2014+A11:2021, IEC 60825-1:2014) |
Aperture angle | ≤ 60° | Reading distance | 500 mm ... 2,200 mm |
Scanning frequency | 400 Hz ... 1,200 Hz | Code resolution | 0.35 mm ... 1.2 mm |
Connection type | Depending on the cloning plug used | Supply voltage | 18 V DC ... 30 V DC |
Power consumption | 15 W | Housing material | Aluminum die cast |
Housing color | Light blue (RAL 5012) | Window material | Glass |
Enclosure rating | IP65 (EN 60529/A1 (2002-02)) | Weight | + 1,500 g |
Dimensions (L x W x H) | 117 mm x 117 mm x 94 mm | MTBF | 100,000 h |
MTTF | 40,000 h (Laser diode) | Readable code structures | 1D codes |
Bar code types | Interleaved 2 of 5, all current code types, Codabar, Code 128, Code 39, Code 93, GS1-128 / EAN 128, UPC / GTIN / EAN | Code printing process | Label (printed codes) |
Print ratio | 2:1 ... 3:1 | No. of codes per scan | 1 ... 20 (Standard decoder)#!#1 ... 6 (SMART decoder) |
No. of codes per reading interval | 1 ... 50 (auto-discriminating) | No. of characters per reading interval | 5,000 |
No. of multiple readings | 1 ... 100 | Ethernet_Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant |
Ethernet_Function | Data interface (read result output), Service interface | Ethernet_Data transmission rate | 10/100 MBit/s |
PROFINET_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 | PROFINET_Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant |
PROFINET_Function | PROFINET Single Port, PROFINET Dual Port | EtherNet/IP™_Remark | Only with cloning plug I/O, CAN IN/OUT or CAN Redundant |
EtherNet/IP™_Data transmission rate | 10/100 MBit/s | Serial_Remark | Only with cloning plug D-Sub and Ethernet |
Serial_Function | Data interface (read result output), AUX (only RS-232) | Serial_Data transmission rate | 0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232) |
CAN_Function | SICK CAN sensor network CSN (CAN controller/CAN device, multiplexer/server) | CAN_Data transmission rate | 20 kbit/s ... 1 Mbit/s |
PROFIBUS DP_Type of fieldbus integration | Optional over external fieldbus module CDF600-2 | Digital inputs | 6 (“Sensor 1” ... “Sensor 6”) |
Digital outputs | 4 (“Result 1” ... “Result 4”) | Reading pulse | Digital inputs, serial interface, auto pulse, CAN |
Optical indicators | 6 LEDs (Ready, Result, laser, Data, CAN, LNK TX, Bar graph for displaying the reading rate percentage (10 LEDs)) | Control elements | 2 buttons |
Parameter storage | Integrated in cloning plug | Configuration software | SOPAS ET |
Specifications may be subject to change without notice
