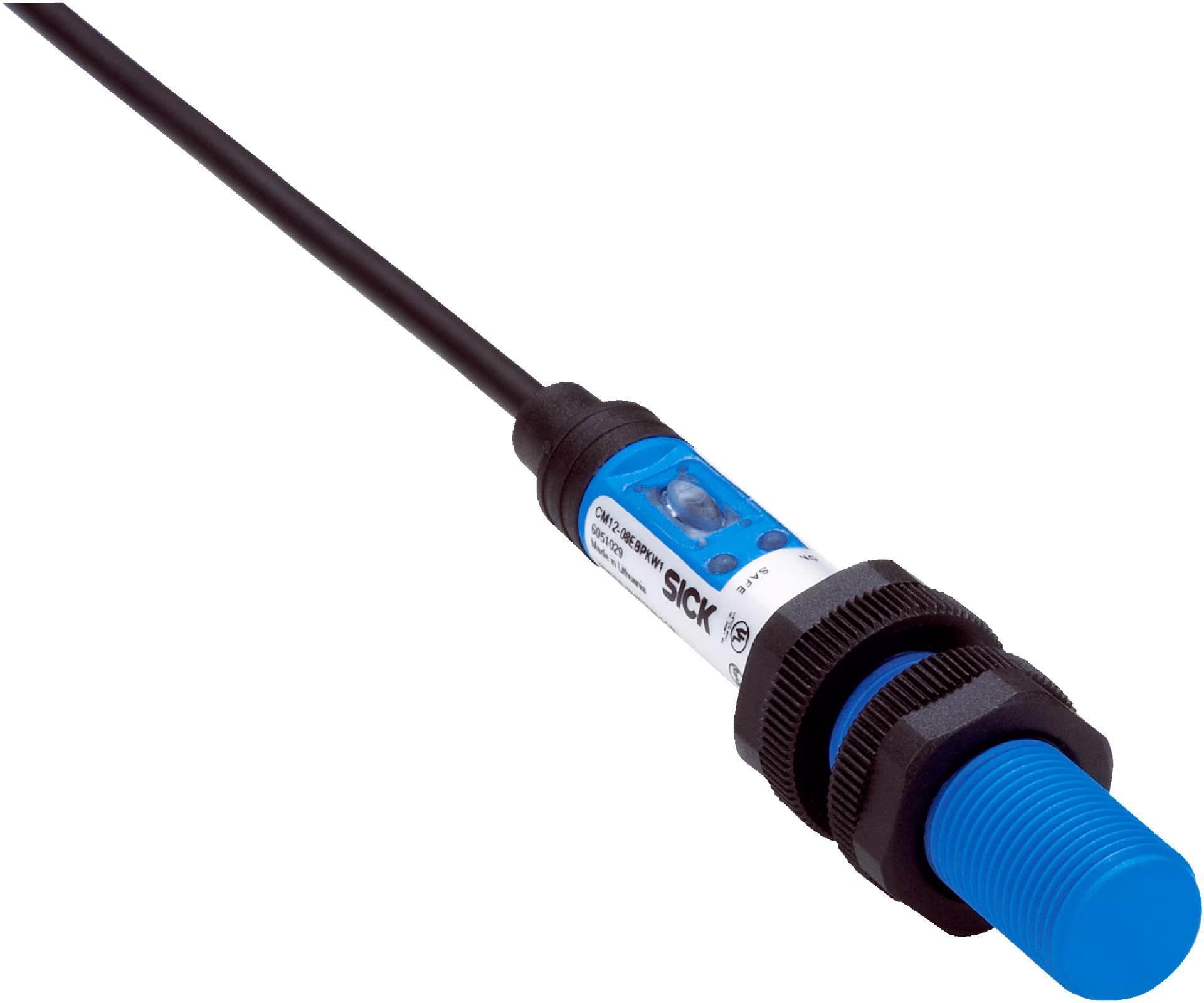

Product Model
CM12-08EBP-KW1
Selling Points
- 1Wide Sensing Range: Detects objects from 0.5 mm to 8 mm with a safe sensing range of 5.76 mm.
- 2Programmable Output: Offers PNP/NPN output function with wire-configurable characteristics for versatile use.
- 3Durable Design: Features an IP68-rated enclosure, ensuring protection against dust and water, even at 1.3 m water depth for 60 minutes.
- 4Easy Installation: Suitable for both non-flush and flush mounting with a single teach-in button for sensitivity adjustment.
- 5High Reliability: Operates within a wide temperature range (-20°C to +85°C) and has a high MTTFD of 603 years for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Housing | Metric | Thread size | M12 x 1 |
Diameter | Ø 12 mm | Sensing range Sn | 0.5 mm ... 8 mm1)#!#0.5 mm ... 4 mm2) |
Safe sensing range Sa | 5.76 mm | Installation type | Non-flush / flush |
Switching frequency | 15 Hz | Connection type | Cable, 4-wire, 2 m |
Switching output | PNP / NPN | Output function | Programmable |
Output characteristic | Wire configurable | Electrical wiring | DC 4-wire |
Adjustment_Teach-in button | Sensitivity | Adjustment_Wire/pin | Sensitivity |
Enclosure rating | IP68 (According to EN 60529) | Items supplied | Mounting nut, PA12 plastic (2x) |
Supply voltage | 10 V DC ... 36 V DC | Ripple | ≤ 10 % |
Voltage drop | ≤ 2.5 V DC | Current consumption | 12 mA |
Time delay before availability | ≤ 120 ms | Hysteresis | 3 % ... 20 % |
Reproducibility | ≤ 5 % | EMC | According to EN 60947-5-2 |
Continuous current Ia | ≤ 200 mA | Cable material | PVC |
Conductor size | 0.14 mm² | Short-circuit protection | ✔ |
Power-up pulse protection | ✔ | Shock and vibration resistance | 30 g, 11 ms / 10 ... 55 Hz, 1 mm |
Ambient operating temperature | –20 °C ... +85 °C | Ambient temperature, storage | –40 °C ... +85 °C |
Housing material | Plastic | Housing length | 84.7 mm |
Thread length | 46.5 mm | Tightening torque, max. | ≤ 1 Nm |
UL File No. | NRKH.E191603 | Note | The values are reference values which may vary |
Metal | 1 | Water | 1 |
PVC | Approx. 0.4 | Oil | Approx. 0.25 |
Glass | 0.6 | Ceramics | 0.5 |
Alcohol | 0.7 | Wood | 0.2 ... 0.7 |
Remark | Associated graphic see "Installation" | A | 8 mm |
B | 12 mm | C | 12 mm |
D | 12 mm | E | 8 mm |
F | 6 x S#!#(max. 48 mm) |
Specifications may be subject to change without notice
