Product Model

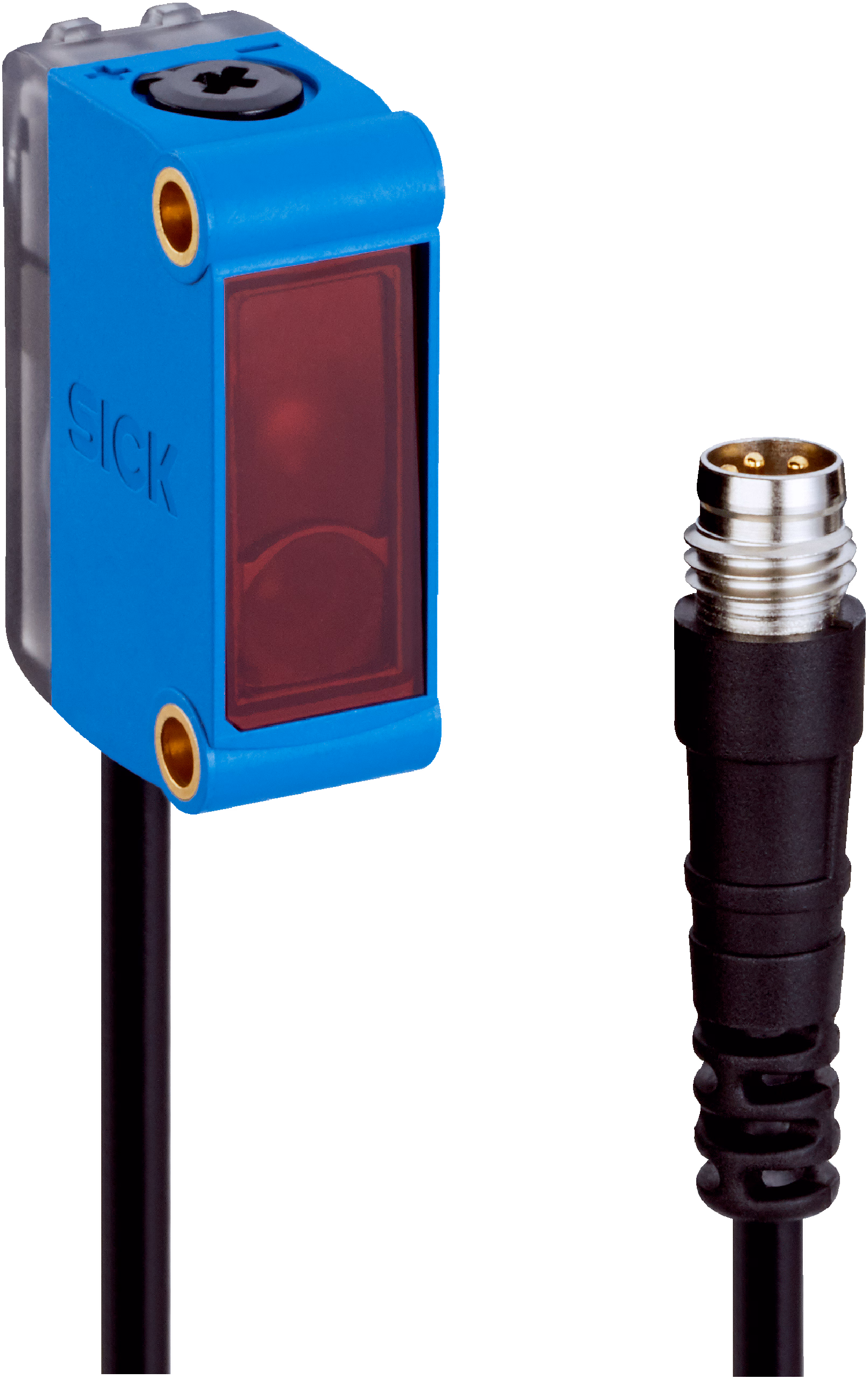

GL6G-P6211S95
Selling Points
- 1Detects objects up to 400mm with precision.
- 2Provides reliable digital output for easy integration.
- 3Ensures durability in harsh environments with an IP67 rating.
- 4Ideal for detecting transparent objects with polarized red light.
- 5Easy mounting with a cable and M8 male connector for fast setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | With minimum distance to reflector (dual lens system) |
Sensing range max. | ≤ 400 mm | Sensing range | ≤ 150 mm |
Polarisation filters | Yes | Emitted beam_Light source | PinPoint LED2) |
Emitted beam_Type of light | Visible red light | Key LED figures_Wave length | 650 nm |
Adjustment | Potentiometer, 270° | Special features | Modified output LED indicator logic#!#Without M3 metal threaded inserts |
Special applications | Detecting transparent objects | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | ± 10 % | Current consumption | 30 mA |
Protection class | III | Digital output_Type | PNP |
Digital output_Switching mode | Light/dark switching | Digital output_Switching mode selector | Selectable via light/dark selector |
Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V | Digital output_Output current Imax. | ≤ 100 mA4) |
Digital output_Response time | < 625 µs5) | Digital output_Switching frequency | 1,000 Hz6) |
Attenuation along light beam | > 20 % | Circuit protection | A7)#!#B8)#!#D9) |
Special feature | Detecting transparent objects | Housing | Rectangular |
Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm | Connection | Cable with M8 male connector, 4-pin |
Connection detail_Conductor size | 0.14 mm² | Connection detail_Length of cable (L) | 300 mm1) |
Material_Housing | Plastic, ABS/PC | Material_Front screen | Plastic, PMMA |
Material_Cable | Plastic, PVC | Weight | 60 g |
Specifications may be subject to change without notice
