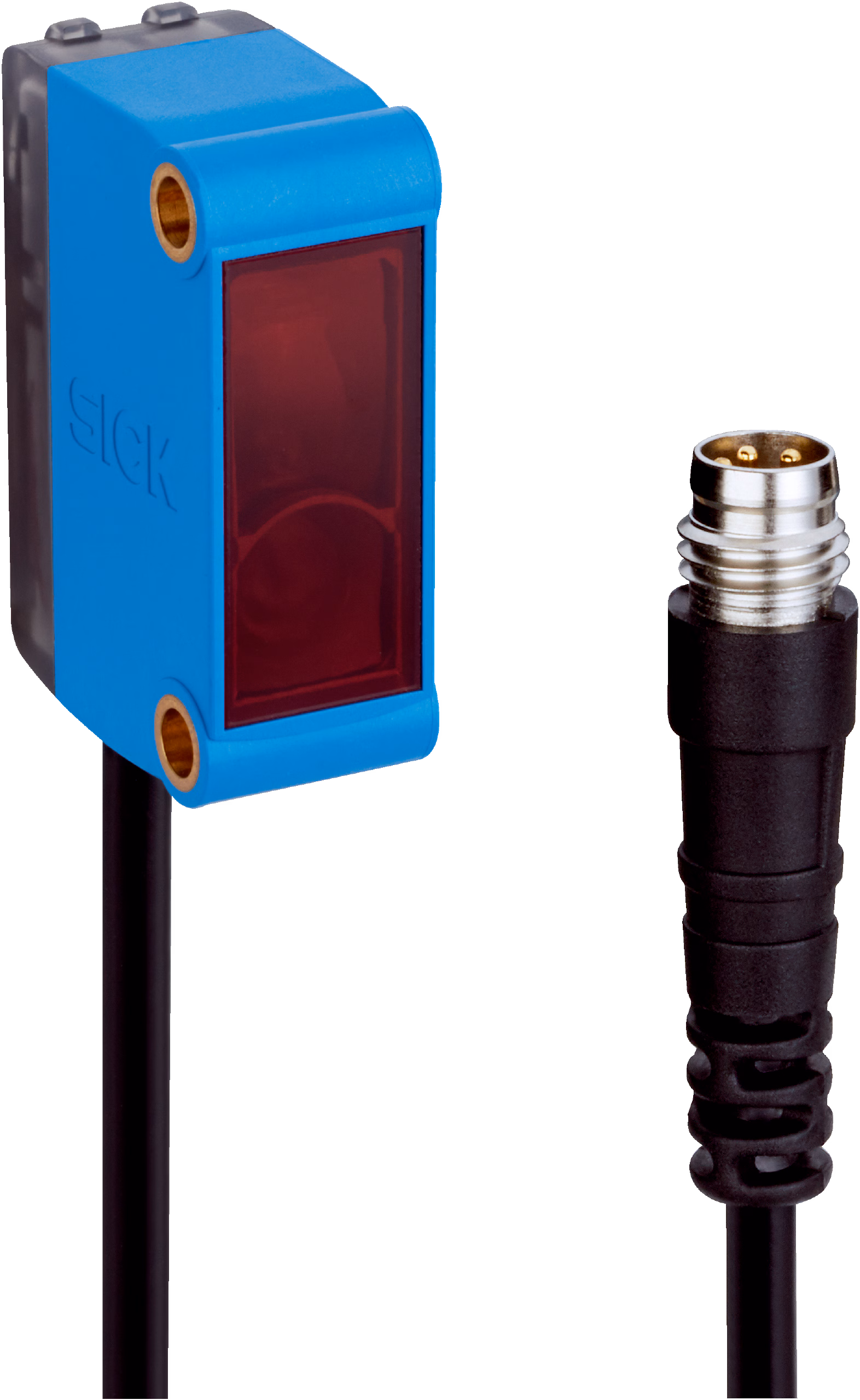

Product Model
GL6-P0312P08
Selling Points
- 1High Sensing Range: Detects objects up to 6 meters with precision.
- 2PNP Output: Provides reliable digital output for easy integration.
- 3IP67 Enclosure Rating: Ensures robust operation in harsh environments.
- 4Miniature Housing: Compact design for easy mounting and space-saving.
- 5Long Service Life: Designed with PinPoint LEDs for up to 100,000 hours of service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | With minimum distance to reflector (dual lens system) |
Sensing range max. | 0.03 m ... 6 m | Sensing range | 0.07 m ... 5 m |
Polarisation filters | Yes | Emitted beam_Light source | PinPoint LED2) |
Emitted beam_Type of light | Visible red light | Emitted beam_Light spot size (distance) | Ø 8 mm (350 mm) |
Key LED figures_Wave length | 650 nm | Adjustment | None |
Items supplied | Reflector P250 | Supply voltage UB | 10 V DC ... 30 V DC |
Ripple | ± 10 % | Current consumption | 30 mA |
Protection class | III | Digital output_Type | PNP |
Digital output_Switching mode | Dark switching | Digital output_Signal voltage PNP HIGH/LOW | VS- (≤ 3 V) / approx. 0 V |
Digital output_Output current Imax. | ≤ 100 mA4) | Digital output_Response time | < 625 µs5) |
Digital output_Switching frequency | 1,000 Hz6) | Circuit protection | A7)#!#B8)#!#D9) |
Housing | Rectangular | Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
Connection | Cable with connector M8, 3-pin | Connection detail_Length of cable (L) | 200 mm1) |
Material_Housing | Plastic, ABS/PC | Material_Front screen | Plastic, PMMA |
Weight | 60 g |
Specifications may be subject to change without notice
