Product Model

GLL170T-B432S10

In Stock
Last updated: 2025/4/17

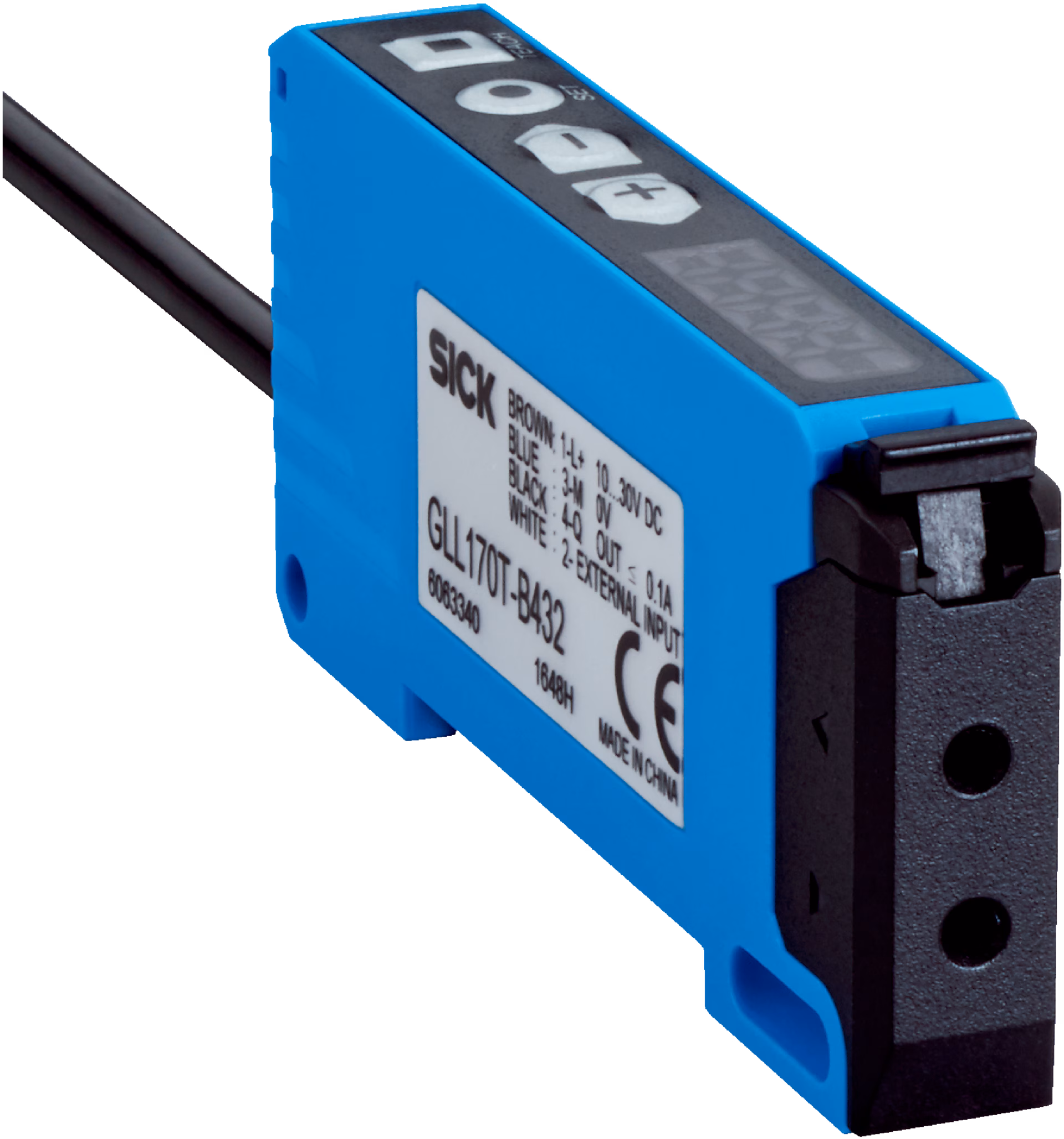

sick GLL170T-B432S10

Selling Points

  • 1Compact dimensions: 10 mm x 31.7 mm x 72.5 mm.
  • 2Adjustable sensing range: Up to 1,320 mm in through-beam system.
  • 3Reliable LED light source: Visible red light with 632 nm wavelength.
  • 4Teach-in button for easy setup: Simplify installation with intuitive teach-in functionality.
  • 5High durability: Average service life of 100,000 hours at +25°C.
Product Details
GLL170T-B432S10
sick

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Device type
Fiber-optic sensors
Device type detail
Stand-alone
Dimensions (W x H x D)
10 mm x 31.7 mm x 72.5 mm
Housing design (light emission)
Rectangular
Sensing range max.
0 mm ... 400 mm (Proximity system)1)2)#!#0 mm ... 1,320 mm (Through-beam system)3)
Sensing range
0 mm ... 350 mm, Proximity system1)2)#!#0 mm ... 1,100 mm, Through-beam system3)
Type of light
Visible red light
Light source
LED
Wave length
632 nm
Adjustment
Teach-in button#!#Cable#!#Plus/minus button
Indication
7-segment
Display
Status LEDs, 4-digit digital display, display selectable between percentage value, absolute digit value and bar display / display of parameters
Supply voltage UB
10 V DC ... 30 V DC
Ripple
≤ 10 %
Current consumption
40 mA
Switching output
PNP, NPN, Selectable via menu
Number of switching outputs
1
Switching mode
Light/dark switching
Switching mode selector
Selectable via menu
Response time
≤ 250 µs, ≤ 50 µs, Selectable via menu
Switching frequency
2 kHz, 10 kHz
Time functions
Switch-on delay#!#Off delay#!#One shot#!#Without time delay
Delay time
Programmable, 0 ms ... 9,999 ms
Input
Teach-in input
Connection type
Cable, 4-wire, 2 m
Cable material
Plastic, PVC
Conductor cross section
0.2 mm²
Cable diameter
Ø 3.8 mm
Circuit protection
A6)#!#B7)#!#C8)#!#D9)
Protection class
III
Weight
66 g
Housing material
Plastic, PC/POM
Tightening torque, max.
0.5 Nm
Enclosure rating
IP66
Items supplied
BEF-WLL180 mounting bracket
Ambient operating temperature
–25 °C ... +55 °C
Ambient temperature, storage
–40 °C ... +70 °C
UL File No.
NRKH2.E300503 & NRKH8.E300503

Specifications may be subject to change without notice
